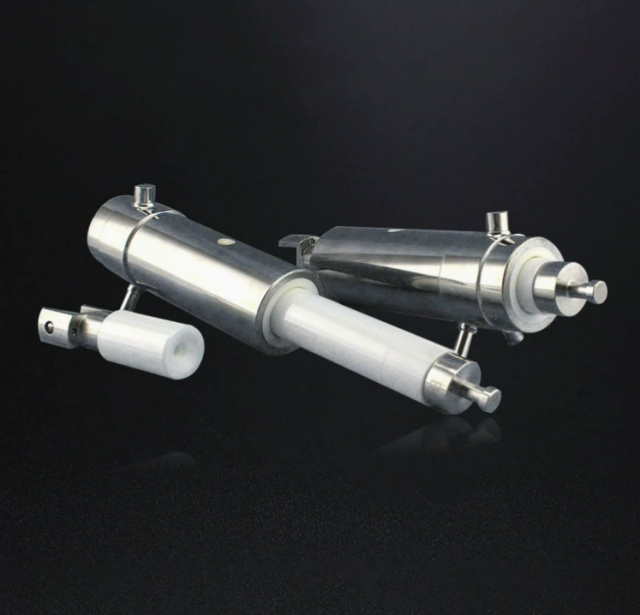

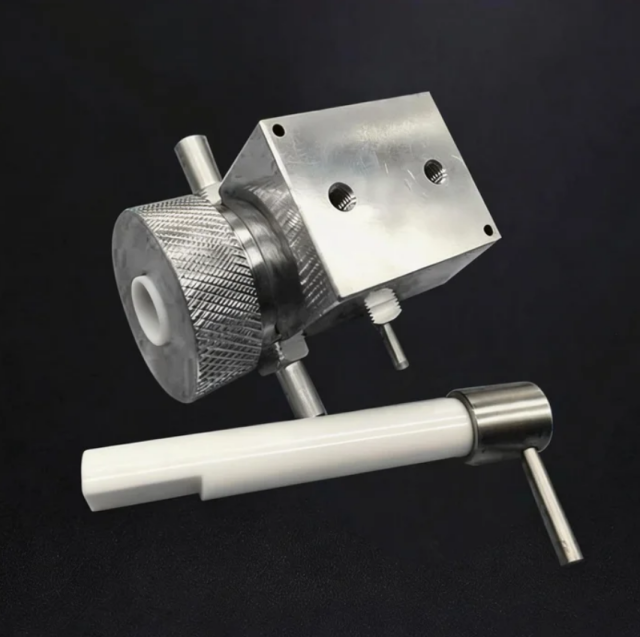

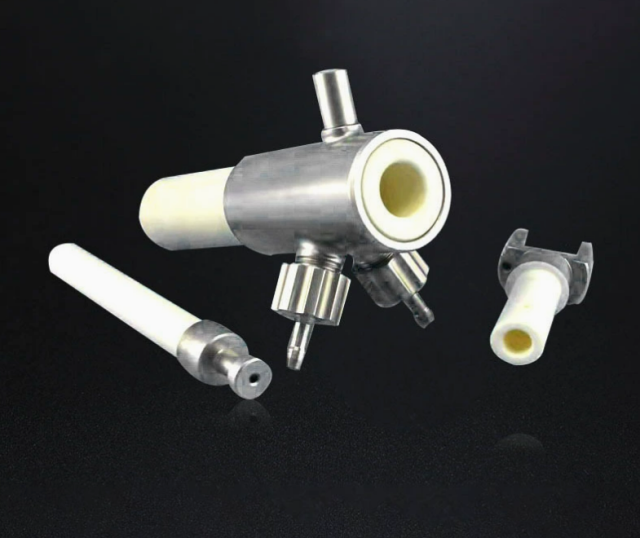

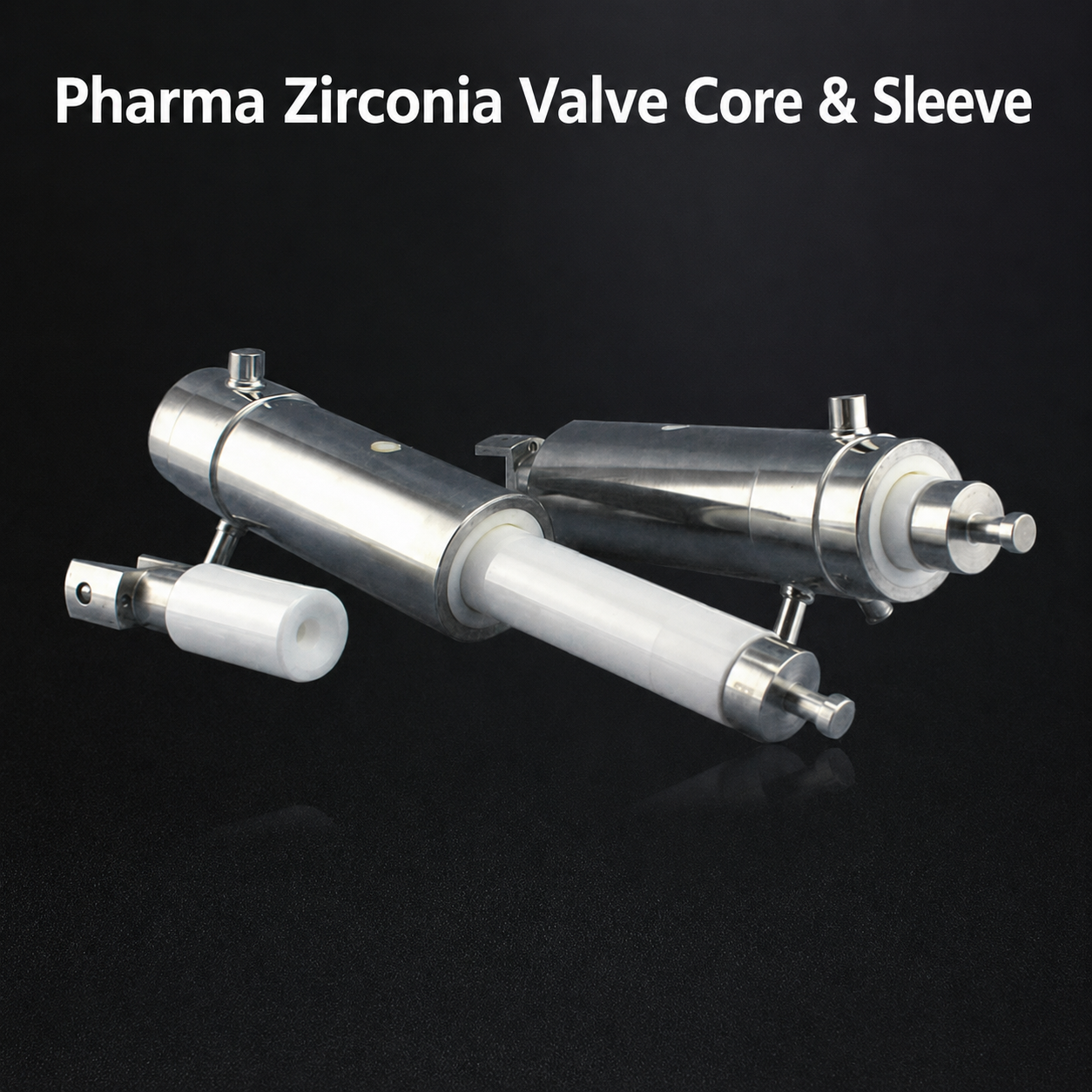

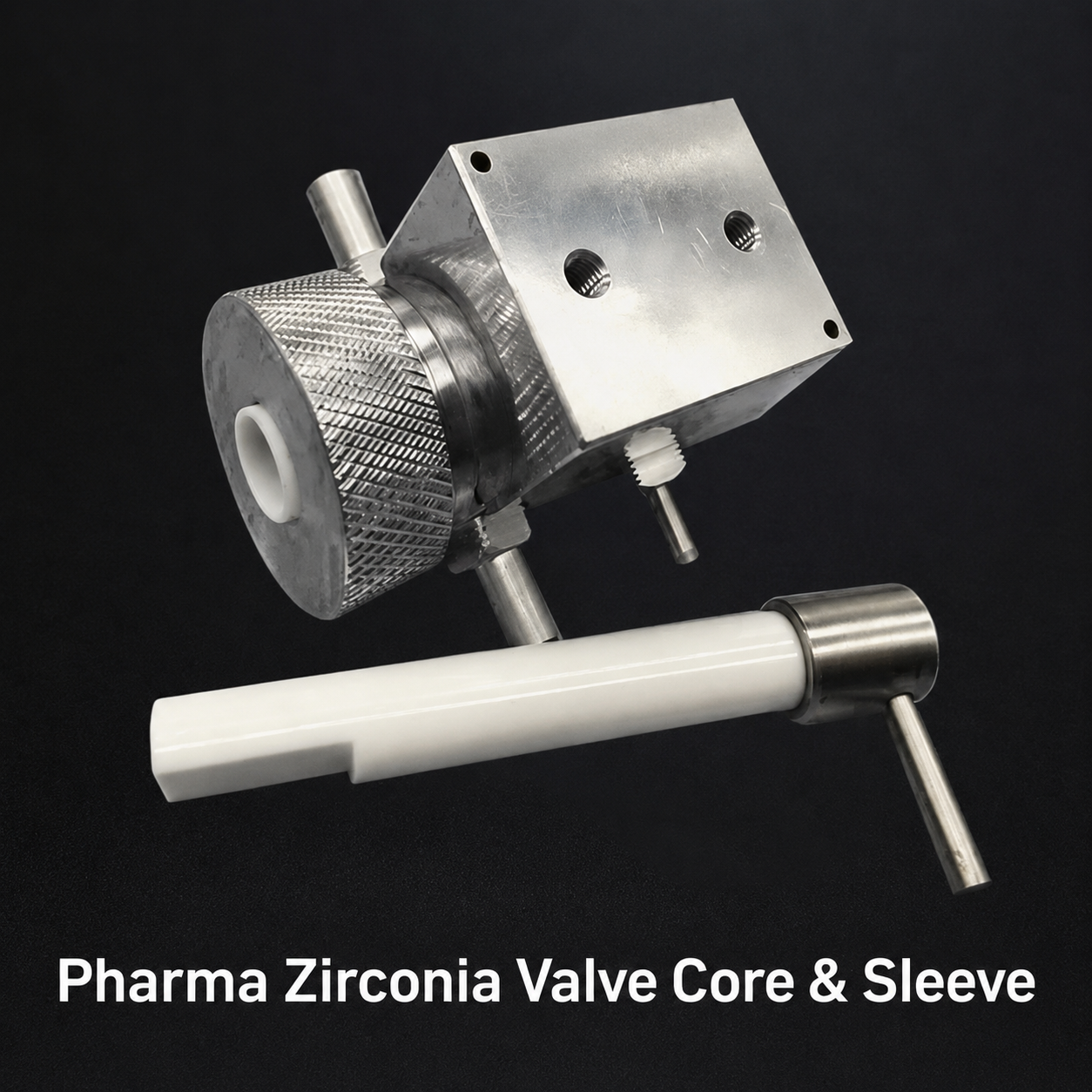

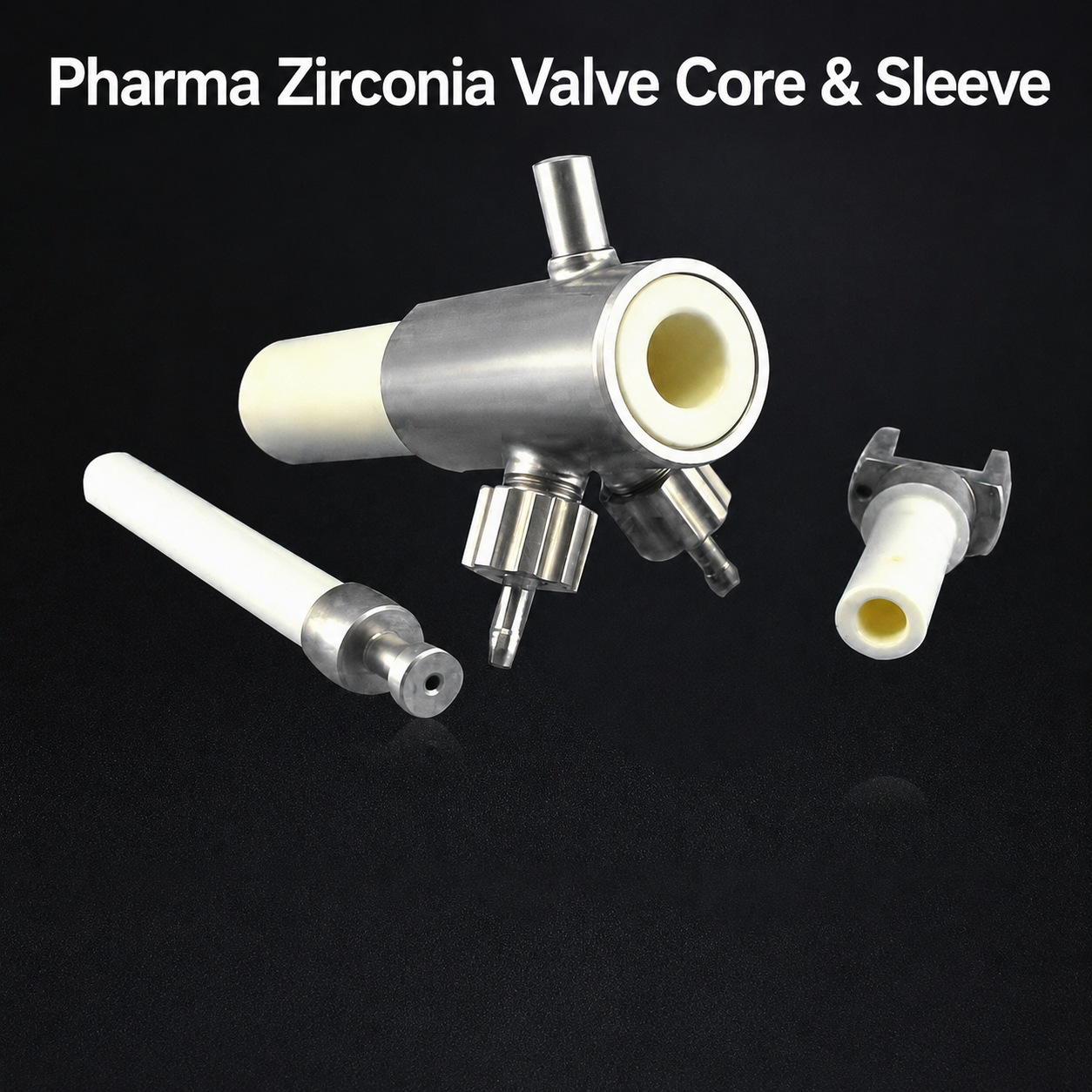

CERAMPRO manufactures custom zirconia ceramic valve cores and sleeves for pharmaceutical metering pumps, dosing pumps, filling systems, and precision fluid control equipment. Made from high-performance zirconia ceramic (ZrO₂), these matched components help improve sealing stability, wear resistance, corrosion resistance, and dimensional accuracy while reducing contamination risk in pharmaceutical liquid handling and clean fluid control applications.
This product is mainly made from zirconia ceramic / ZrO₂. Zirconia ceramic is a high-performance technical ceramic material with high hardness, high strength, excellent wear resistance, and good surface polishing performance. It is suitable for pump and valve structures that require precise matching, repeated movement, and corrosion resistance.
For different pharmaceutical liquids, solvents, temperatures, and assembly conditions, CERAMPRO can help evaluate suitable ceramic materials, machining processes, and inspection solutions.
Zirconia ceramic valve cores and sleeves are mainly used in fluid control systems that require dosing accuracy, cleanliness, wear resistance, and corrosion resistance. They are suitable alternatives for some metal valve parts that may face wear, corrosion, or rust issues.
This product can also be used together with ceramic plungers, ceramic pistons, ceramic sleeves, ceramic seals, and other ceramic pump components for precision liquid dosing, transfer, and filling systems.
The main value of this product is not only the zirconia material itself, but also the matching accuracy between the valve core and sleeve. For metering pumps and filling systems, roundness, concentricity, surface roughness, and matching clearance can all affect dosing stability and sealing performance.
For more custom ceramic component manufacturing capabilities, you can also visit our precision ceramic machining service page.

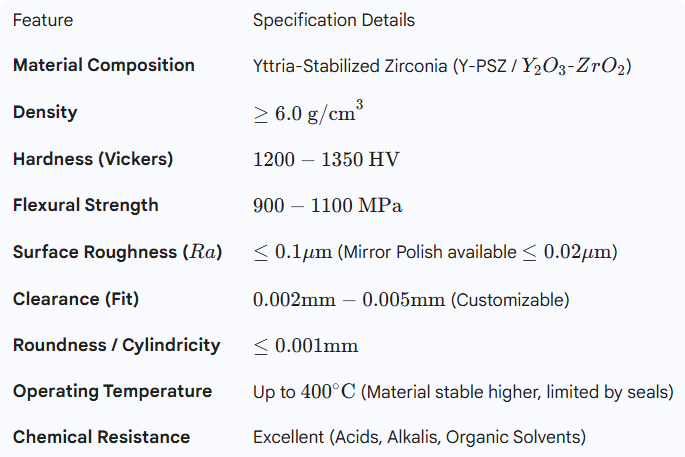

| Material | Zirconia Ceramic / ZrO₂ |
| Density | ≥ 6.0 g/cm³ |
| Hardness | 1200–1350 HV |
| Flexural Strength | 900–1100 MPa |
| Surface Roughness | Ra ≤ 0.1 μm; mirror polishing available upon request |
| Matching Clearance | 0.002–0.005 mm, customizable according to structure |
| Roundness / Cylindricity | ≤ 0.001 mm achievable, depending on part geometry and inspection method |
| Operating Temperature | Up to 400°C in typical pump applications |
| Chemical Resistance | Good resistance to many acids, alkalis, solvents, and pharmaceutical liquids; final compatibility should be confirmed according to the working media. |
| Customization | OD, ID, length, holes, grooves, chamfers, sealing surfaces, and matching clearance |
Note: The above values are typical reference data. Final specifications should be confirmed according to drawings, working media, tolerance requirements, surface finish requirements, and inspection standards.
It is mainly used in metering pumps, dosing pumps, filling systems, and precision fluid control equipment to support stable dosing, sealing, and liquid transfer.
Zirconia ceramic offers better wear resistance, corrosion resistance, and rust-free performance, making it suitable for pharmaceutical liquids, solvents, and clean fluid environments.
Yes. CERAMPRO can customize zirconia ceramic valve cores and sleeves according to customer drawings, samples, pump structures, and tolerance requirements.
Yes. The valve core and sleeve can be manufactured and inspected as matched components to improve assembly consistency and sealing stability.
We recommend providing drawings, material requirements, tolerances, surface roughness, working media, sample quantity, and estimated batch demand.
Yes. Sealing surfaces can be ground or polished according to drawing and application requirements. The final surface roughness should be evaluated based on part structure.
Zirconia ceramic has good chemical stability and corrosion resistance, making it suitable for many pharmaceutical liquid and clean fluid applications. Final material selection should be confirmed based on the actual working media.
Yes. CERAMPRO supports sample development, small-batch trial production, and follow-up mass production.
Standard specifications usually take about 15–25 days. Customized specifications usually take about 20–35 days. Complex or high-precision parts need to be evaluated according to drawings.
We can also manufacture ceramic plungers, ceramic pistons, ceramic sleeves, ceramic seals, ceramic valve components, and other custom ceramic pump parts.
