Material Introduction
Main Material: Zirconia Ceramic (ZrO₂)
Optional Material: Alumina Ceramic (Al₂O₃) upon request.
Zirconia ceramic is commonly used for precision pump sleeves and piston components where wear resistance,
corrosion resistance, and stable dimensional accuracy are important. In metering pump applications, it helps
reduce friction, support smooth movement, and maintain stable operation over time
Functional Features
Wear Resistance：Helps reduce wear during repeated piston movement and pump operation.
Corrosion Resistance：Suitable for clean, chemical, and mildly corrosive fluid environments.
Precision Bore Control：Inner and outer diameters can be ground according to drawing requirements.
Smooth Surface：Polished surfaces help reduce friction and support stable movement.
Dimensional Stability：Maintains stable dimensions after sintering and precision grinding.
Custom Manufacturing：Available based on customer drawings, samples, or assembly requirements.
Application Industries
Metering Pumps · Dosing Systems · Filling Equipment
Fluid Control Systems · Chemical Pump Components · Clean Processing Equipment
Lead Time
Sample: 15–20 days
Custom Production: 20–35 days, depending on drawing complexity and order quantity
Service: OEM/ODM manufacturing based on drawings or samples
Product Description

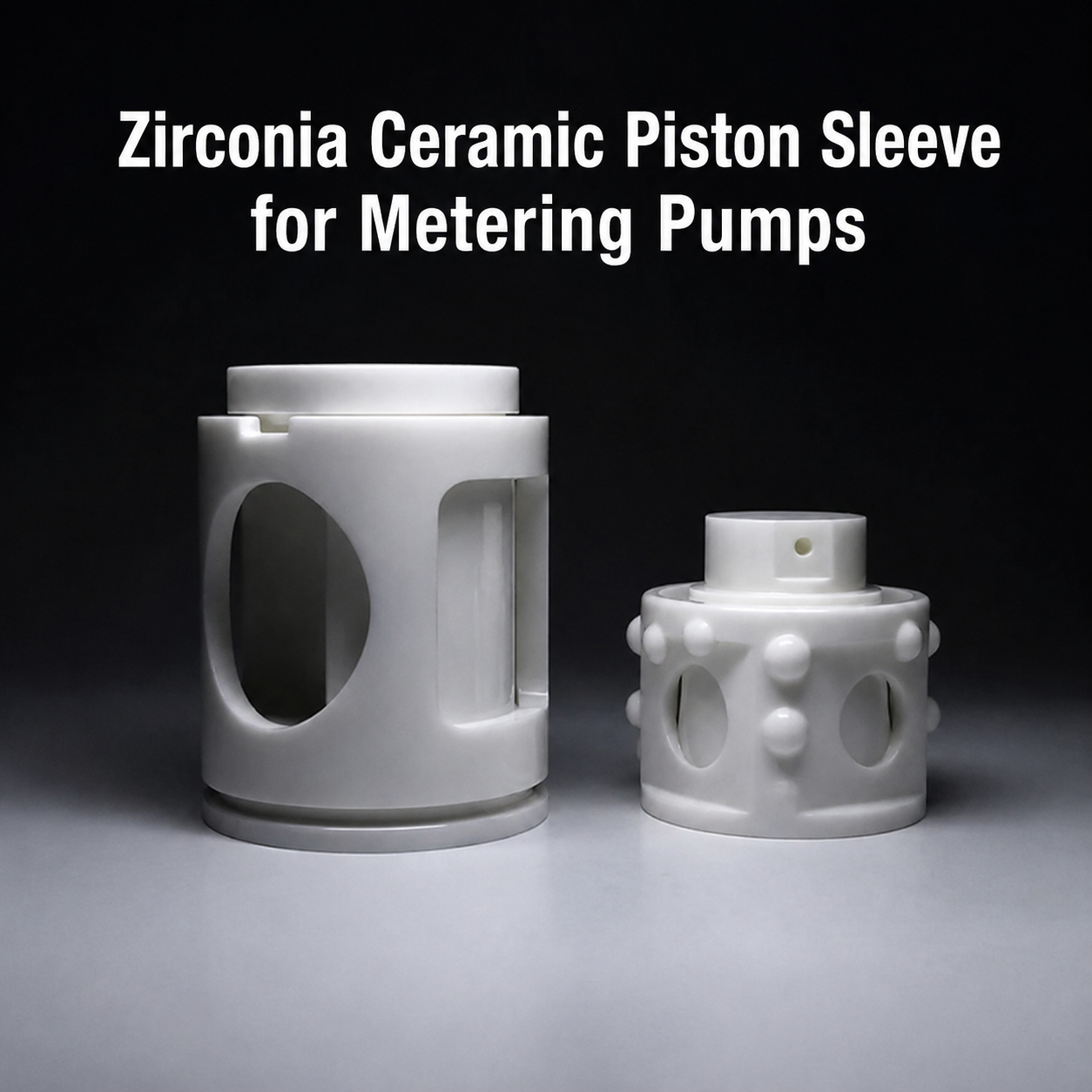

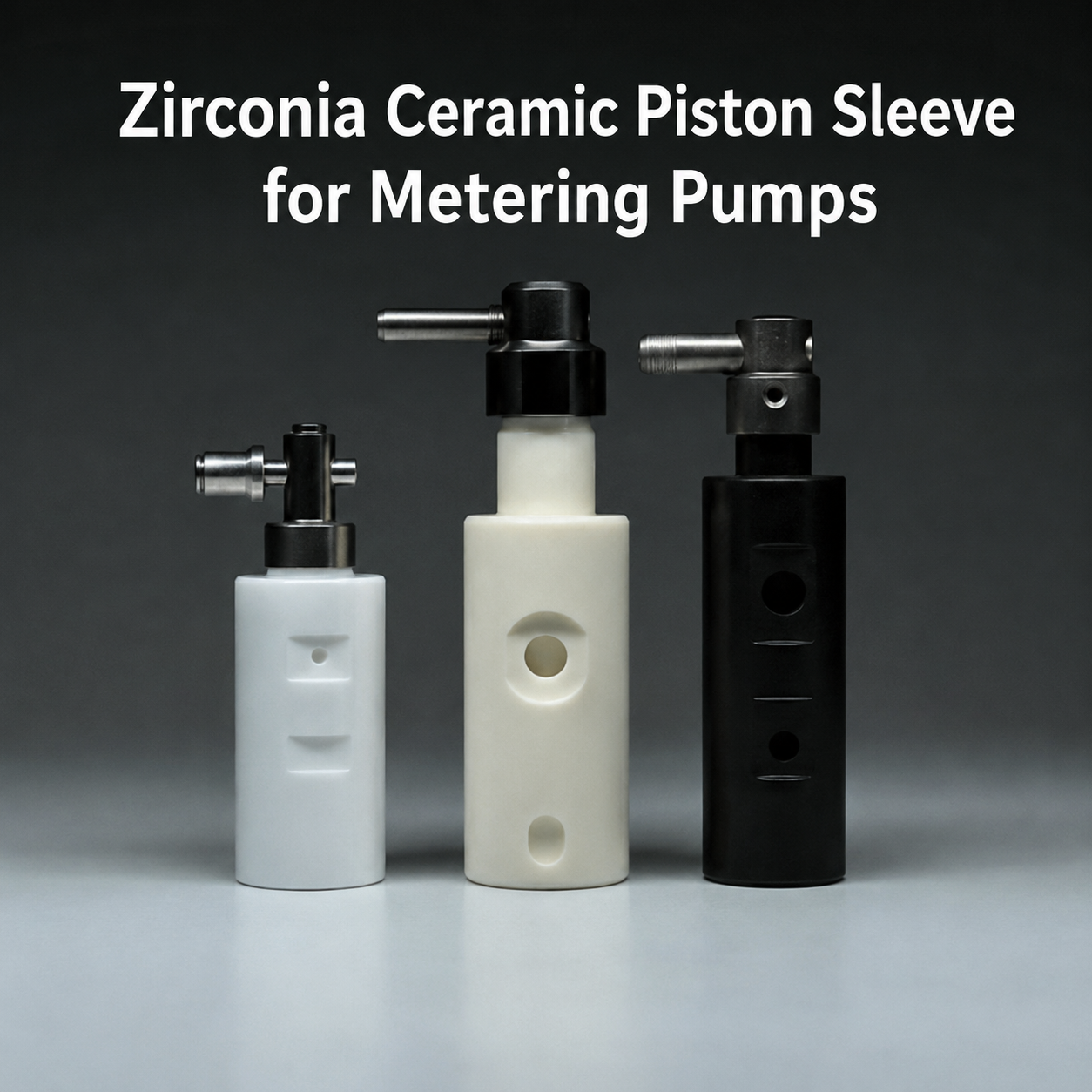

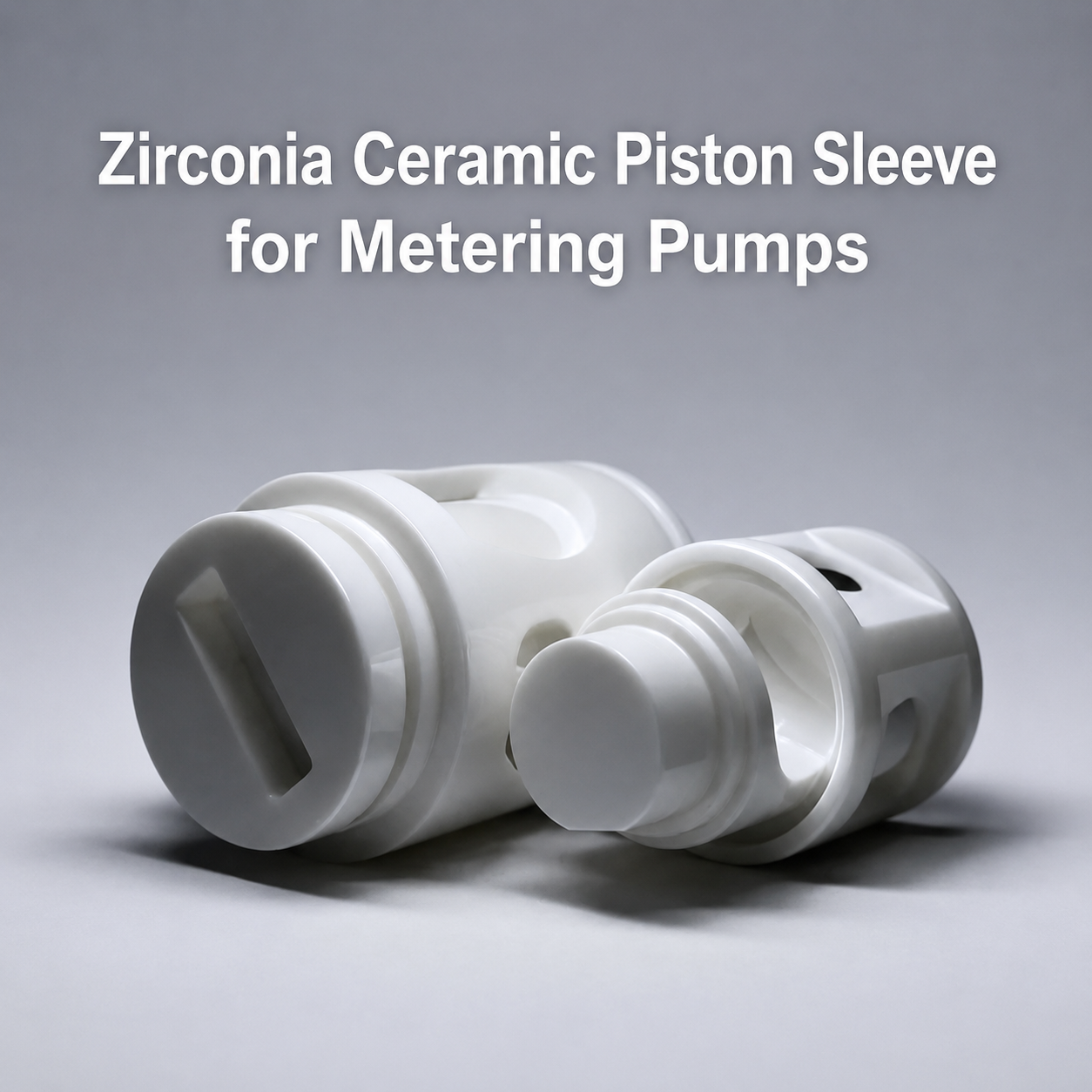

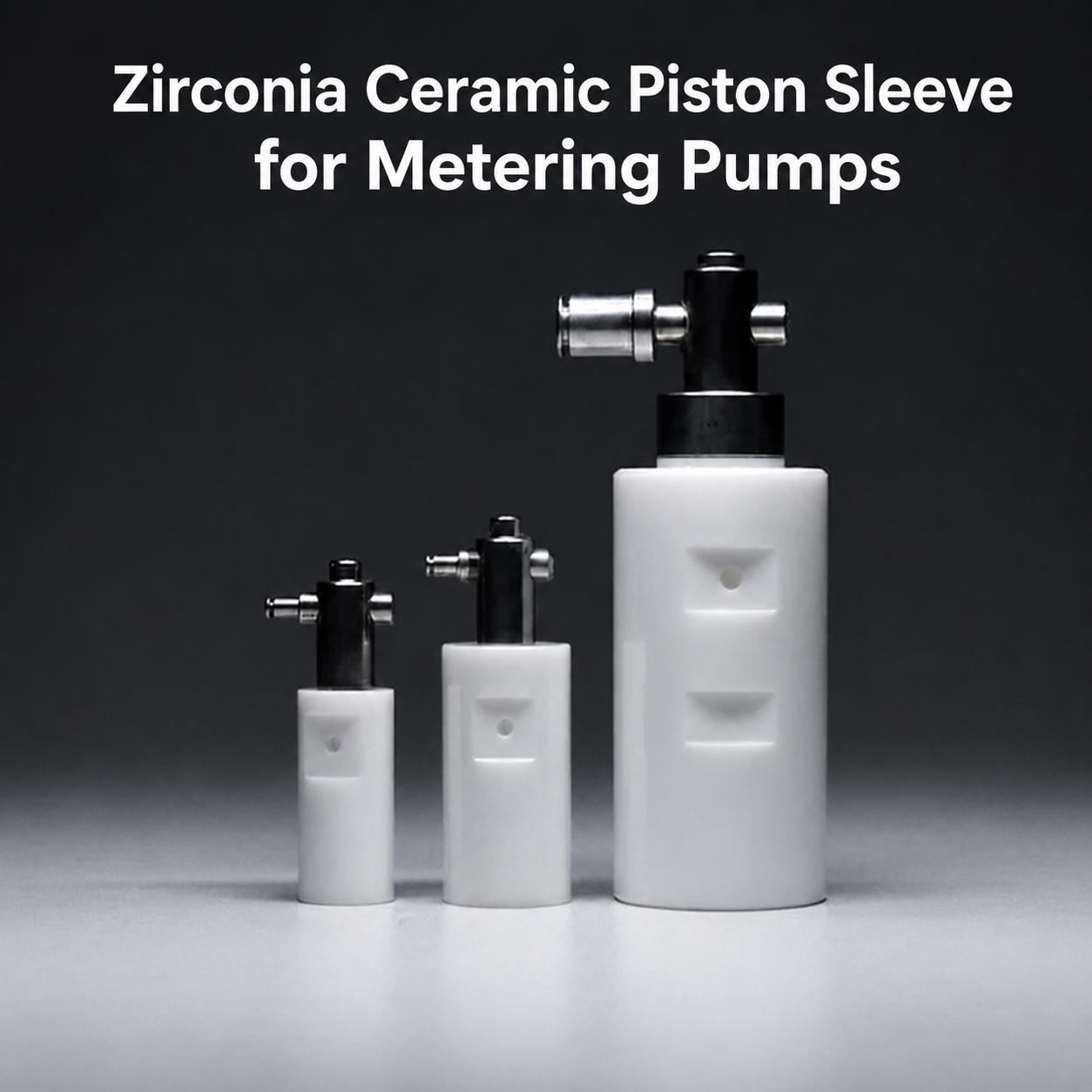

The Zirconia Ceramic Piston Sleeve for Metering Pumps is designed for precision pump assemblies where smooth piston movement, wear resistance, and stable fit are important. Made from high-purity zirconia ceramic (ZrO₂), this sleeve offers good resistance to wear, corrosion, and dimensional change during repeated pump operation.
In metering pumps, dosing systems, and filling equipment, the piston sleeve often works under repeated sliding or rotating movement. A stable bore, smooth surface, and accurate fit are important for reducing friction and supporting long-term operation. CERAMPRO can manufacture ceramic piston sleeves according to customer drawings, samples, or assembly requirements, including custom inner diameter, outer diameter, length, tolerance, and surface finish.
For projects that require alternative ceramic materials, alumina ceramic (Al₂O₃) can also be considered depending on the working conditions, cost requirements, and application environment..
Material System
Main Material: Zirconia Ceramic, ZrO₂
Optional Material: Alumina Ceramic, Al₂O₃, available upon request
Zirconia ceramic is often selected for precision pump sleeves and piston components because it offers a good balance of wear resistance, toughness, corrosion resistance, and dimensional stability.
For some applications, alumina ceramic can also be used when high hardness, electrical insulation, or cost control is required. The final material choice can be adjusted according to the fluid media, operating pressure, temperature, sealing requirements, and expected service life.
Application Scenarios
This zirconia ceramic piston sleeve is suitable for precision pump and fluid control applications where stable movement, wear resistance, and reduced metal contamination are important.
Dosing systems
Filling equipment
Chemical-resistant pump assemblies
Food and beverage filling equipment
Pharmaceutical dosing equipment
Cosmetic liquid filling systems
Typical media may include food liquids, beverage ingredients, pharmaceutical liquids, cosmetic liquids, cleaning fluids, chemical fluids, and other media where wear resistance, corrosion resistance, or lower contamination risk is required.
Core Advantages
Stable Fit for Pump Assemblies
For metering pump applications, the piston sleeve needs to work closely with the moving piston, shaft, or related pump component. CERAMPRO can control the inner bore, outer diameter, roundness, and surface finish according to customer drawings to support stable assembly and smooth movement.
Reduced Wear During Repeated Movement
Zirconia ceramic helps reduce wear in repeated sliding or rotating conditions. This makes it suitable for pump components that operate frequently under fluid contact or continuous movement.
Smooth Bore and Surface Finish
The inner bore and working surface can be processed through precision machining, grinding, and polishing to help reduce friction and support smoother piston movement.
Good Stability in Fluid Environments
Zirconia ceramic provides good stability in many clean, chemical, and mildly corrosive fluid environments. It can help reduce the risk of metal corrosion, wear particles, or surface contamination in sensitive pump applications.
Custom Manufacturing Support
CERAMPRO can manufacture ceramic piston sleeves based on drawings, samples, working conditions, and assembly requirements. Custom ID, OD, length, tolerance, surface finish, and material selection can be reviewed according to the actual project.
Key Selling Points
Custom zirconia ceramic piston sleeve manufacturing
Suitable for metering pumps, dosing systems, and filling equipment
Precision inner bore grinding and polishing available
Good wear resistance and corrosion resistance
Smooth surface for reduced friction and stable movement
Custom ID, OD, length, and tolerance based on drawings
OEM and ODM production based on drawings or samples
Small-batch samples and mass production supported
Material certificates and inspection reports available upon request
Related to ceramic plungers and pistons and other precision ceramic components
Core Technical Specifications
|
Property |
Specification Details |
|
Product Name |
Zirconia Ceramic Piston Sleeve for Metering Pumps |
|
Material |
Zirconia Ceramic (ZrO₂); Alumina Ceramic (Al₂O₃) optional |
|
Density |
≥ 6.02 g/cm³ |
|
Hardness |
1200–1350 HV |
|
Surface Finish |
Ground or polished surface; mirror polishing available upon request |
|
Key Requirements |
Inner bore accuracy, roundness, concentricity, and stable fit |
|
Customization |
Customization |
Note: Final dimensions, tolerances, surface finish, and matching clearance should be confirmed according to customer drawings and actual working conditions.
FAQ
1. What is a zirconia ceramic piston sleeve used for?
A zirconia ceramic piston sleeve is used in metering pumps, dosing pumps, filling systems, and fluid control equipment to support smooth piston movement, wear resistance, and stable long-term operation.
2. Why use zirconia ceramic for pump sleeves?
Zirconia ceramic offers good wear resistance, corrosion resistance, toughness, and dimensional stability, making it suitable for precision pump components.
3. Can CERAMPRO customize the inner and outer diameters?
Yes. CERAMPRO can manufacture ceramic piston sleeves according to customer drawings, samples, and assembly requirements.
4. Can the inner bore be precision ground?
Yes. Inner bore grinding and polishing can be provided according to fit, movement, and sealing requirements.
5. Is this product suitable for metering pumps?
Yes. This product is suitable for metering pump and dosing system applications where wear resistance, smooth movement, and dimensional stability are important.
6. What materials are available?
The main recommended material is zirconia ceramic, ZrO₂. Alumina ceramic, Al₂O₃, is also available depending on the working conditions and cost requirements.
7. Can the surface be polished?
Yes. Surface grinding and polishing can be provided to reduce friction and support smoother operation.
8. What information is needed for a quotation?
Please provide drawings, dimensions, tolerances, material requirements, surface finish, application environment, fluid media, and quantity.
9. Can samples be produced before mass production?
Yes. Sample production is available. The typical sample lead time is around 15–20 days, depending on part complexity.
10. What is the normal production lead time?
Custom production usually takes around 20–35 days, depending on drawing complexity, quantity, and inspection requirements.
