Place of Origin: Guangdong, China
Material:
Made from high-toughness zirconia ceramics, this ceramic insulating nozzle offers excellent wear resistance, electrical insulation, and chemical stability for precision fluid, spraying, and equipment applications.
Key Features:
High hardness, good fracture toughness, stable insulation performance, corrosion resistance, smooth bore finish, and strong dimensional stability after precision ceramic machining.
Application Industries:
Suitable for ceramic nozzle applications in semiconductor equipment, new energy systems, precision spraying, chemical fluid control, laboratory instruments, and automated dispensing equipment. It can also be used in selected semiconductor ceramic parts where insulation and wear resistance are required.
Lead Time:
Lead time depends on drawing complexity, hole diameter, tolerance requirements, surface finish, material grade, and order quantity. Prototype and batch production support are available.

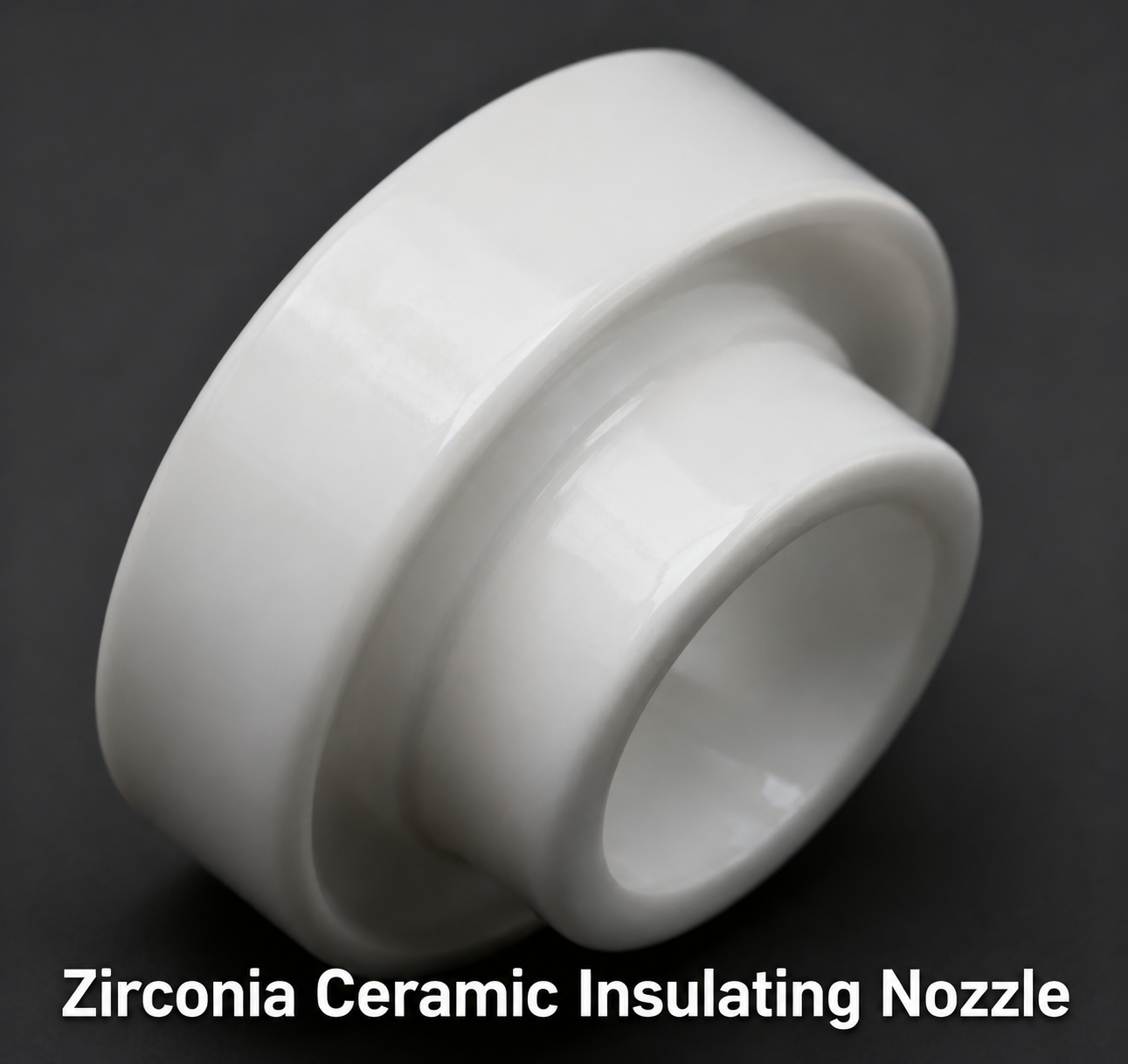

The Zirconia Ceramic Insulating Nozzle is a precision ceramic nozzle made for applications that require electrical insulation, wear resistance, corrosion resistance, and stable fluid control. Made from high-toughness zirconia ceramics, it is suitable for equipment where metal nozzles may wear, corrode, deform, or cause metal contamination.
This nozzle can be customized according to customer drawings, samples, hole diameter, sealing structure, working media, and installation requirements. It is commonly used in precision spraying, chemical delivery, semiconductor wet process equipment, new energy coating systems, laboratory instruments, and automated dispensing equipment.
The main material is yttria-stabilized zirconia, including Y-PSZ and Y-TZP zirconia grades. Zirconia ceramic offers high toughness, high hardness, good insulation, and excellent chemical stability. Compared with alumina ceramic, zirconia has better impact resistance and is more suitable for small, complex, or thin-walled nozzle structures.
For different working environments, CERAMPRO can also help customers compare zirconia with alumina, silicon carbide, boron nitride, and other ceramic nozzle materials to select the most suitable solution.
Zirconia ceramic insulating nozzles are used in equipment where stable flow, clean material performance, electrical isolation, and long service life are required.
In clean manufacturing applications, this product can also be used with other semiconductor ceramic parts where insulation, corrosion resistance, and low contamination are important.
CERAMPRO focuses on custom ceramic nozzle manufacturing, not only standard catalog parts. We can adjust the outer diameter, flange shape, hole diameter, inner bore, sealing face, step structure, and mounting dimensions according to drawings or samples.
For projects with strict tolerance, sealing, or surface requirements, our precision ceramic machining capability can help improve assembly accuracy, flow consistency, and product reliability.
| Parameter | Typical Value | Notes |
|---|---|---|
| Material | Y-PSZ / Y-TZP Zirconia | High-toughness ceramic |
| Max Operating Temperature | 1000°C – 1200°C | For reference, depending on working conditions |
| Thermal Conductivity | 2.0 – 3.0 W/(m·K) | Low thermal conductivity |
| Dielectric Strength | ≥ 15 kV/mm | Suitable for insulating applications |
| Fracture Toughness | 8 – 12 MPa·m1/2 | Good resistance to cracking |
| Vickers Hardness | 1200 – 1300 HV | High wear resistance |
| Surface Roughness | ≤ 0.4 μm Ra | Custom finish available |
The above data is for reference only. Final specifications should be confirmed based on material grade, drawing, tolerance, working medium, temperature, pressure, and assembly conditions. CERAMPRO can provide dimensional inspection and related testing capability support when required.
| Material | Main Features | Recommended Use |
|---|---|---|
| Zirconia Ceramic | High toughness, good insulation, high hardness, and wear resistance | Insulating nozzles, precision spray nozzles, and complex ceramic parts |
| Alumina Ceramic | Good insulation, stable performance, and cost-effective | Standard ceramic insulators, sleeves, and general ceramic nozzles |
| Silicon Carbide Ceramic | Excellent wear resistance, corrosion resistance, and thermal performance | Abrasive slurry, chemical spray, and high-temperature environments |
| Boron Nitride Ceramic | Good thermal shock resistance and machinability | High-temperature insulation and special non-stick applications |
Zirconia ceramic is a good choice when the nozzle requires toughness, insulation, wear resistance, and dimensional stability at the same time. If the working environment involves extreme wear, high temperature, or special chemical conditions, CERAMPRO can help evaluate a more suitable ceramic material.
It is a precision ceramic nozzle made from zirconia ceramic for applications requiring insulation, wear resistance, corrosion resistance, and stable fluid control.
Zirconia ceramic offers better insulation, higher wear resistance, good chemical stability, and lower metal contamination risk than many metal nozzles.
The main material is yttria-stabilized zirconia, including Y-PSZ and Y-TZP zirconia ceramic grades.
Yes. The hole diameter, inner channel, stepped bore, tapered bore, and sealing surface can be customized according to drawings or samples.
Yes. It can be used in selected semiconductor wet process, cleaning, chemical delivery, and precision fluid-control equipment.
Zirconia ceramic has good chemical stability and can be used with many corrosive liquids. The final material selection should be confirmed according to the actual medium and working conditions.
A drawing or sample is preferred. Hole diameter, tolerance, surface finish, working medium, pressure, temperature, quantity, and assembly requirements are also helpful.
Yes. CERAMPRO supports prototype samples, small-batch production, and long-term OEM supply for custom ceramic components.
Yes. The nozzle can be precision ground or polished according to structure and drawing requirements.
Yes. CERAMPRO can help compare zirconia, alumina, silicon carbide, boron nitride, and other advanced ceramics based on working media, temperature, wear condition, and insulation requirements.
