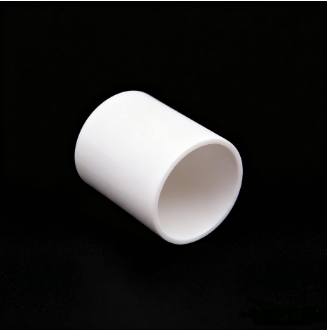

Product Name: Wear-Resistant & High-Insulation Alumina Ceramic Sleeve
Product Material: 95% - 99.8% High-Purity Alumina ($Al_2O_3$), optional glaze coating for enhanced surface hydrophobicity.
Material Characteristics: Diamond-grade surface hardness (Mohs 9), High dielectric strength (>15 kV/mm), Excellent thermal stability (up to 1700°C), Exceptional chemical resistance, Low thermal expansion coefficient, Zero electrical tracking.
Application Fields: High-voltage wire guides, Plasma torch insulators, Corona treatment rollers, Induction heating coil liners, Centrifugal pump shaft protectors, Insulating spacers for vacuum furnaces, High-speed wire drawing bushings.
Application Industries: Biomedical (Sterile liquid pumps), Advanced Machinery (Precision spindles), New Energy (Lithium battery electrode processing), Fluid Control (Abrasive slurry handling), Electronic Engineering (RF/Microwave equipment), Aerospace (Sensor insulating sleeves), Petrochemical (Corrosive fluid injection), Broad Semiconductor (Etch and CVD tools).
Processing Difficulties: Maintaining high concentricity between internal and external diameters to prevent vibration, Achieving sub-micron wall thickness uniformity for consistent electrical insulation, Minimizing surface micro-cracks during diamond grinding to avoid dielectric breakdown, Achieving mirror-finish roughness (Ra < 0.1μm) to reduce seal friction.
Processing Flow: Powder preparation → Cold Isostatic Pressing (CIP) → Green machining → High-temperature sintering → Precision diamond grinding (ID/OD) → Honing and mirror polishing → 100% Dielectric strength testing → CMM dimensional verification → Secure packaging.
Delivery Period: Standard specifications: 14-25 days, Customized high-precision or extra-long sleeves: 30-45 days.
Our Wear-Resistant & High-Insulation alumina ceramic sleeve offers exceptional abrasion resistance and dielectric strength above 15 kV/mm. Ideal for precision industrial ceramic solutions requiring durability and electrical insulation.
Functional Role and Targeted Applications of the Alumina Ceramic Sleeve
Designed for demanding electrical and mechanical environments, this alumina ceramic tube serves industries requiring both high wear resistance and superior insulation. Target users include manufacturers of high-voltage equipment and plasma processing systems who rely on components that maintain integrity under intense friction and electrical load. The sleeve’s robust construction supports continuous operation in thermal and abrasive conditions while minimizing downtime, meeting the precision and reliability expectations of engineers and procurement specialists seeking specialized industrial ceramic solutions.

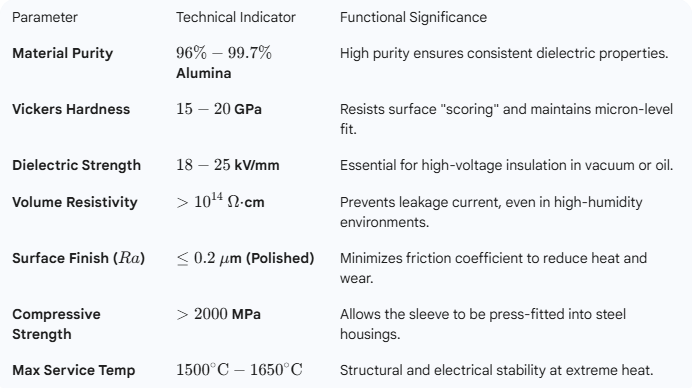

Technical Features and Specifications Ensuring High Performance
This sleeve is fabricated from 95% to 99.8% high-purity alumina, achieving a Mohs hardness of 9, exceeding traditional metals in abrasion resistance. It exhibits dielectric strength greater than 15 kV/mm, withstanding electrical stresses and thermal exposure up to 1700°C. The precision manufacturing process incorporating cold isostatic pressing, sintering, and diamond grinding ensures consistent wall thickness and a mirror-finished surface, critical to reducing friction and guaranteeing uniform electrical insulation in applications. Optional glaze coatings enhance surface properties for customized operational demands, representing advanced alumina ceramic machining capabilities.
Industry Relevance and Practical Integration in Industrial Processes
The sleeve is extensively applicable in sectors such as aerospace sensor assemblies, induction heating coils, and battery electrode manufacturing, where both electrical insulation and wear resistance are paramount. It functions as a key component in wire guides, plasma torch insulators, and vacuum furnace spacers, contributing to system efficiency and longevity. By integrating this custom alumina ceramic part, industries gain reliable protection against thermal and mechanical degradation, aligning with stringent regulatory standards and supporting continuous production workflows through minimized maintenance requirements.
Our Wear-Resistant Insulating Alumina Sleeves are the premium solution for applications where mechanical friction and electrical stress intersect. Utilizing 99% high-purity alumina, these sleeves provide a surface harder than hardened steel, effectively resisting abrasive particles in the fluid or mechanical stream. Simultaneously, the material acts as a world-class electrical insulator, preventing arcing and leakage even in high-temperature or high-frequency environments. Designed for long-term reliability, these sleeves significantly reduce maintenance downtime by protecting shafts and components from both wear-induced scarring and electrical failure.
Key Features:
Dual-Function Performance: Combines extreme wear resistance with superior electrical resistivity.
Corrosion & Erosion Immunity: Completely inert to industrial acids and oxidizers, ensuring no particle contamination.
High Thermal Endurance: Maintains critical insulating properties and structural shape at temperatures exceeding 1000°C.
Zero Creep & Friction: Precision-polished surfaces minimize energy loss and heat generation during operation.
Our Market Advantages
What customization options are available for your alumina ceramic sleeves?
We offer custom alumina ceramic sleeves tailored to your specific size, wall thickness, and surface treatment requirements. Our precision manufacturing ensures that each sleeve meets your exact application demands for optimal performance and durability.
How do you ensure the wear resistance of your alumina ceramic parts?
Our sleeves feature a diamond-grade surface hardness (Mohs 9), surpassing hardened steel. This is achieved through high-purity alumina material and precision diamond grinding, providing outstanding wear resistance for demanding industrial environments.
What is the typical delivery time for your wear-resistant alumina ceramic sleeves?
Standard alumina ceramic sleeves are delivered within 14-25 days, depending on specifications. Customized or extra-long sleeves require a longer lead time of 30-45 days to ensure precision and quality in production.
Can your alumina ceramic sleeves withstand high temperatures and harsh chemicals?
Yes, our sleeves endure temperatures up to 1700°C and exhibit exceptional chemical resistance against acids and oxidizers. This makes them suitable for challenging environments requiring both high thermal stability and chemical durability.
