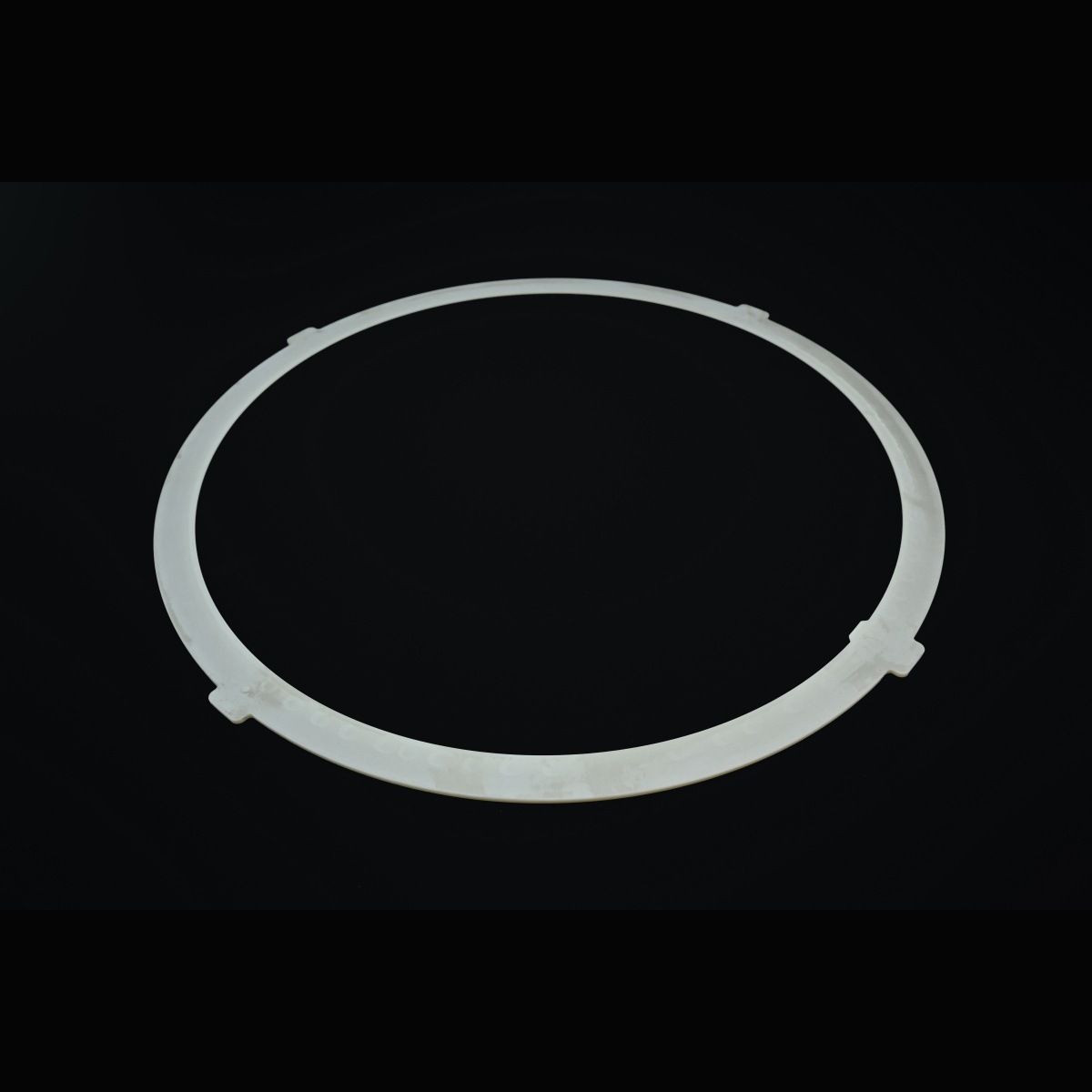

Product Name: Ultra-thin and Super-large Aluminum Nitride Ceramic Ring
Product Material: High-purity Aluminum Nitride Ceramic (AlN ≥99.5%)
Material Characteristics:
Ultra-high thermal conductivity (180-200 W/m·K), excellent electrical insulation, low thermal expansion coefficient (4.5×10⁻⁶/°C), high temperature resistance (up to 1800°C), excellent plasma erosion resistance, high mechanical strength, non-toxic and environmentally friendly
Application Fields:
Semiconductor manufacturing, plasma etching equipment, chemical vapor deposition systems, high-power electronic devices
Application Industries:
Wafer processing equipment, LED manufacturing, power module packaging, 5G communication devices
Processing Difficulties:
Large diameter-to-thickness ratio (>50:1) processing, warpage control during sintering, ultra-thin wall machining (thickness <1mm), surface roughness control (Ra ≤0.4μm), dimensional accuracy maintenance
Processing Flow:
Powder preparation → slurry process → tape casting → isostatic pressing → high-temperature sintering → CNC precision machining → laser measurement → ultrasonic cleaning → vacuum packaging
Delivery Period:
35-45 days
The ultra-thin and super-large aluminum nitride ceramic ring offers exceptional thermal management and electrical insulation. Designed for high-performance uses, this industrial ceramic meets rigorous standards in compact assemblies.
This ultra-thin and super-large aluminum nitride ceramic ring represents the pinnacle of advanced ceramic manufacturing technology. Specifically engineered for the most demanding semiconductor and electronic applications, it combines exceptional thermal management capabilities with outstanding electrical insulation properties. The large-size design with ultra-thin walls makes it ideal for applications requiring both thermal performance and space efficiency in high-temperature, high-frequency environments.
Key Features:
Exceptional Thermal Management - Ultra-high thermal conductivity (180-200 W/m·K) enables efficient heat dissipation in high-power applications
Perfect Electrical Insulation - High dielectric strength (≥15 kV/mm) ensures reliable performance in high-voltage environments
Superior Thermal Stability - Withstands thermal cycling from room temperature to 1800°C without performance degradation
Excellent Plasma Resistance - Maintains structural integrity in corrosive plasma environments
Precision Dimensional Control - Advanced manufacturing process ensures tight tolerances (±0.1mm) and excellent surface quality

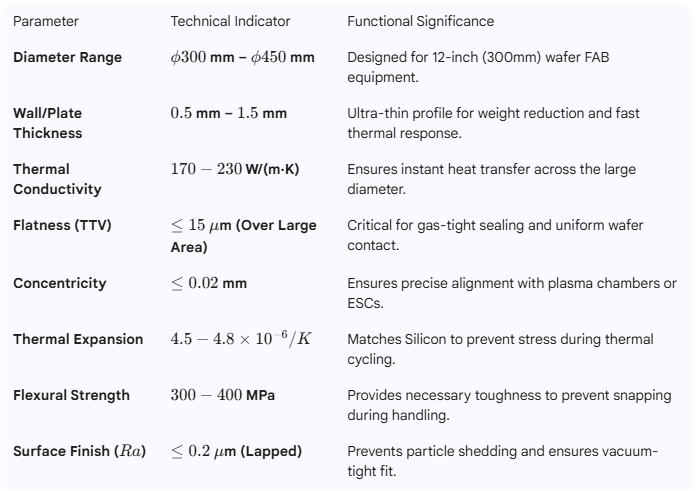

Core Technical Specifications
Our Market Advantages
Targeted Application and User Base for Thermal Efficiency Components
The ultra-thin and super-large aluminum nitride ceramic ring is engineered to meet the demanding requirements of advanced thermal management applications. Primarily aimed at engineers and procurement specialists in electronics, semiconductor manufacturing, and high-frequency device industries, this component addresses challenges related to heat dissipation and electrical insulation within compact assemblies. Its design is optimized for users requiring space-efficient solutions that maintain mechanical robustness and withstand harsh thermal cycling. As a custom aluminum nitride ceramic option, it supports tailored integration, facilitating streamlined workflows in precision-driven industrial settings.
Precision-engineered Material Properties and Specifications
This ring utilizes high-purity aluminum nitride ceramic (AlN ≥ 99.5%) to achieve outstanding performance metrics critical for industrial use. It features an ultra-thin wall with a diameter-to-thickness ratio exceeding 50:1, allowing significant surface area exposure for rapid heat transfer. The thermal conductivity ranges between 180-200 W/m·K, coupled with a dielectric strength of ≥15 kV/mm, ensuring safe operation in high-voltage environments. The component withstands temperatures up to 1800°C and exhibits excellent plasma erosion resistance. Every piece undergoes CNC machining with tight tolerances (±0.1 mm), reinforcing its suitability among industrial ceramic materials requiring high dimensional accuracy and reliability.
Industry Integration and Value in Performance-critical Roles
In sectors such as semiconductor processing, high-power electronics, and automation equipment, this industrial ceramic ring plays a pivotal role by improving device longevity and operational stability. Its ability to rapidly dissipate heat, resist thermal shock, and maintain electrical insulation contributes to reduced failure rates and enhanced system uptime. The solution adapts well to both prototyping and production phases, offering significant ROI through improved thermal performance and compliance with stringent industrial standards. As a product from a reputable aluminum nitride ceramic manufacturer, it provides reliable integration into complex assemblies driven by high-frequency, high-temperature conditions.
Product Advantages
Structural and Design Merits Promoting System Adaptability
The ultra-thin and super-large aluminum nitride ceramic ring’s design achieves a delicate balance between minimal thickness and large diameter, optimizing the heat transfer surface while maintaining mechanical integrity. Its high diameter-to-thickness ratio (>50:1) leverages advanced isostatic pressing and CNC machining to enable precise dimensional control of ±0.1 mm. This allows seamless integration as a modular component in demanding assemblies. As a crafted industrial ceramic solution, it ensures uniformity in reproducibility, essential for consistent performance across manufacturing batches. Such structural refinement supports adaptable configurations in compact electronic and semiconductor systems.
Performance Attributes Enhancing Usability and Reliability
This ceramic ring delivers ultra-high thermal conductivity (180-200 W/m·K) ensuring rapid heat dissipation and exceptional dielectric properties (≥15 kV/mm) protecting components from electrical stress. Its resistance to thermal shock and plasma erosion allows for stable performance under repeated exposure to temperatures up to 1800°C, improving equipment uptime. The precision surface finish facilitates assembly integration, reducing installation complications. This combination of performance parameters renders the product invaluable to engineers seeking dependable custom aluminum nitride ceramic components that elevate system durability and operational efficiency.
Use Scenarios
Thermal Management in Semiconductor Equipment Manufacturing
Within semiconductor fabrication environments, where device miniaturization and thermal load density increase, the ultra-thin aluminum nitride ceramic ring functions as a critical thermal interface component. Here, it manages heat dissipation effectively while preserving electrical insulation integrity, essential for safe high-voltage operation. Its high thermal conductivity and tight dimensional tolerances enable precise fitting into wafer processing tools and plasma reactors, reducing thermal gradients and enhancing yield consistency. This ring conforms to standards required by semiconductor industries, integrating efficiently within automated assembly lines and device testing stations as a trusted industrial ceramic part.
Prototype Development and High-Power Electronics Testing
In the research and development of high-power electronic modules, this aluminum nitride ceramic ring supports thermal load validation within compact assemblies. Its high-temperature resilience and plasma erosion resistance facilitate repeated test cycles without degradation, ensuring reliability of performance data. As a wholesale aluminum nitride ceramic component with customizable options, it accommodates diverse design iterations driven by R&D teams. Integration with diagnostic equipment provides consistent test conditions, enabling engineers to evaluate thermal management efficacy and refine product designs with confidence in their industrial ceramic materials.
FAQ
What material is used to make the Ultra-thin and Super-large Aluminum Nitride Ceramic Ring?
We manufacture our ring using high-purity aluminum nitride ceramic with a composition of AlN ≥ 99.5%. This ensures excellent thermal conductivity, mechanical strength, and dielectric properties ideal for demanding industrial ceramic applications.
Can you customize the dimensions or specifications of the aluminum nitride ceramic ring?
Yes, we provide full custom aluminum nitride ceramic solutions based on your drawings or samples. Our in-house CNC machining and advanced processing methods allow us to meet precise tolerances and specific design requirements efficiently.
What are the delivery times for orders of your aluminum nitride ceramic products?
Our standard delivery period for the Ultra-thin and Super-large Aluminum Nitride Ceramic Ring is typically 35 to 45 days. This timeframe ensures thorough material preparation, precision manufacturing, and strict quality inspections to meet your project standards.
How should I install and maintain the ultra-thin ceramic ring in high-temperature environments?
We advise careful handling during installation to preserve the ring’s precision and thin-wall structure. Our industrial ceramic components are designed to withstand temperatures up to 1800°C and resist thermal shock, but avoid mechanical impacts to maintain long-term performance.
