Place of Origin: Guangdong, China
Material Introduction:
Made from high-purity Alumina Ceramic or Aluminum Nitride Ceramic with a controlled metallized layer for ceramic-to-metal brazing, soldering, and electrical connection.
Key Features:
Stable metallized surface, reliable ceramic-to-metal bonding, good electrical insulation, thermal stability, and compatibility with nickel plating, brazing alloys, and further metal assembly.
Application Industries:
Used in electronic packaging, vacuum devices, sensor components, power modules, RF/microwave parts, laser assemblies, and high-voltage insulation systems. Related applications: Electronic Engineering.
Lead Time:
Lead time depends on ceramic material, metallized area, plating requirement, brazing structure, drawing complexity, and order quantity.

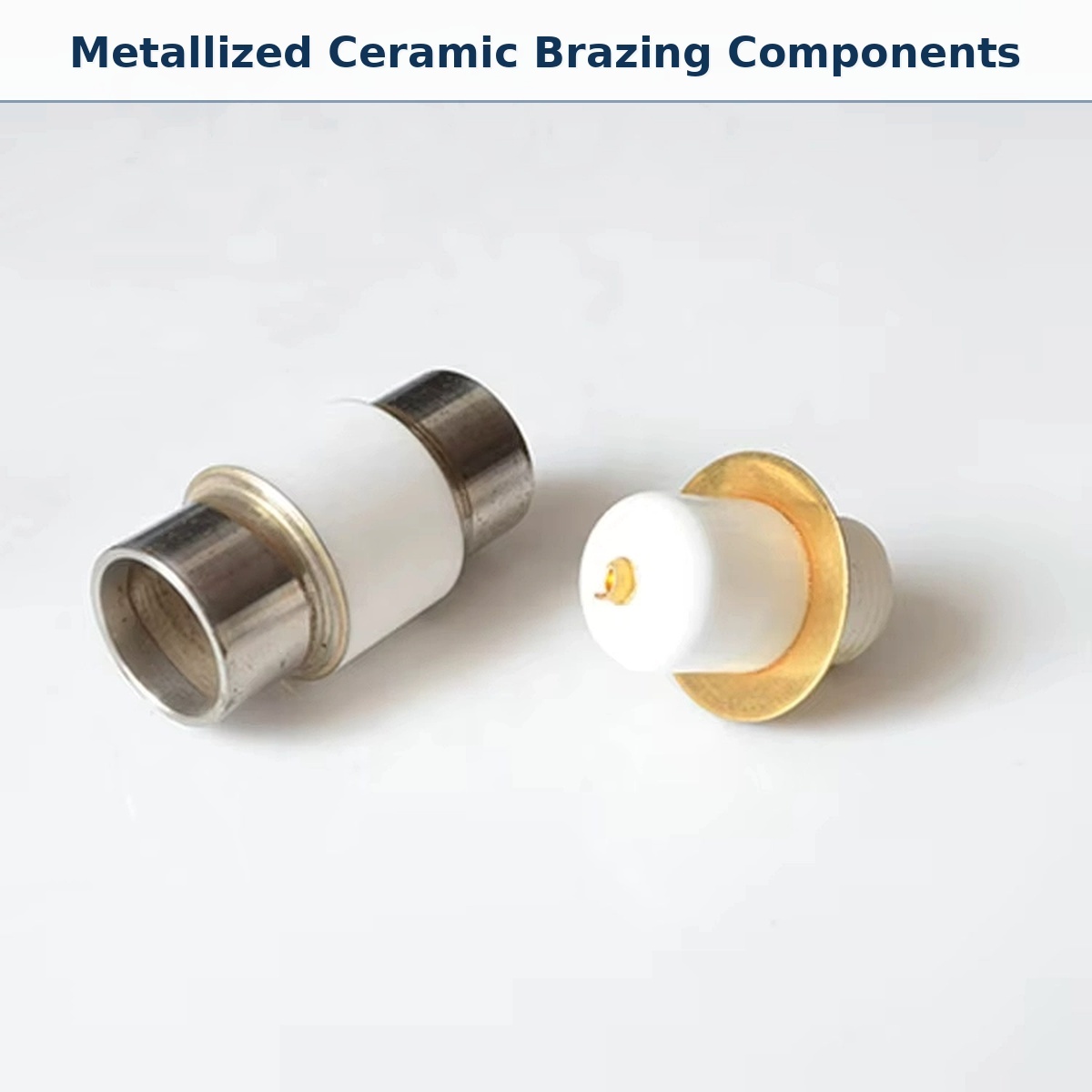

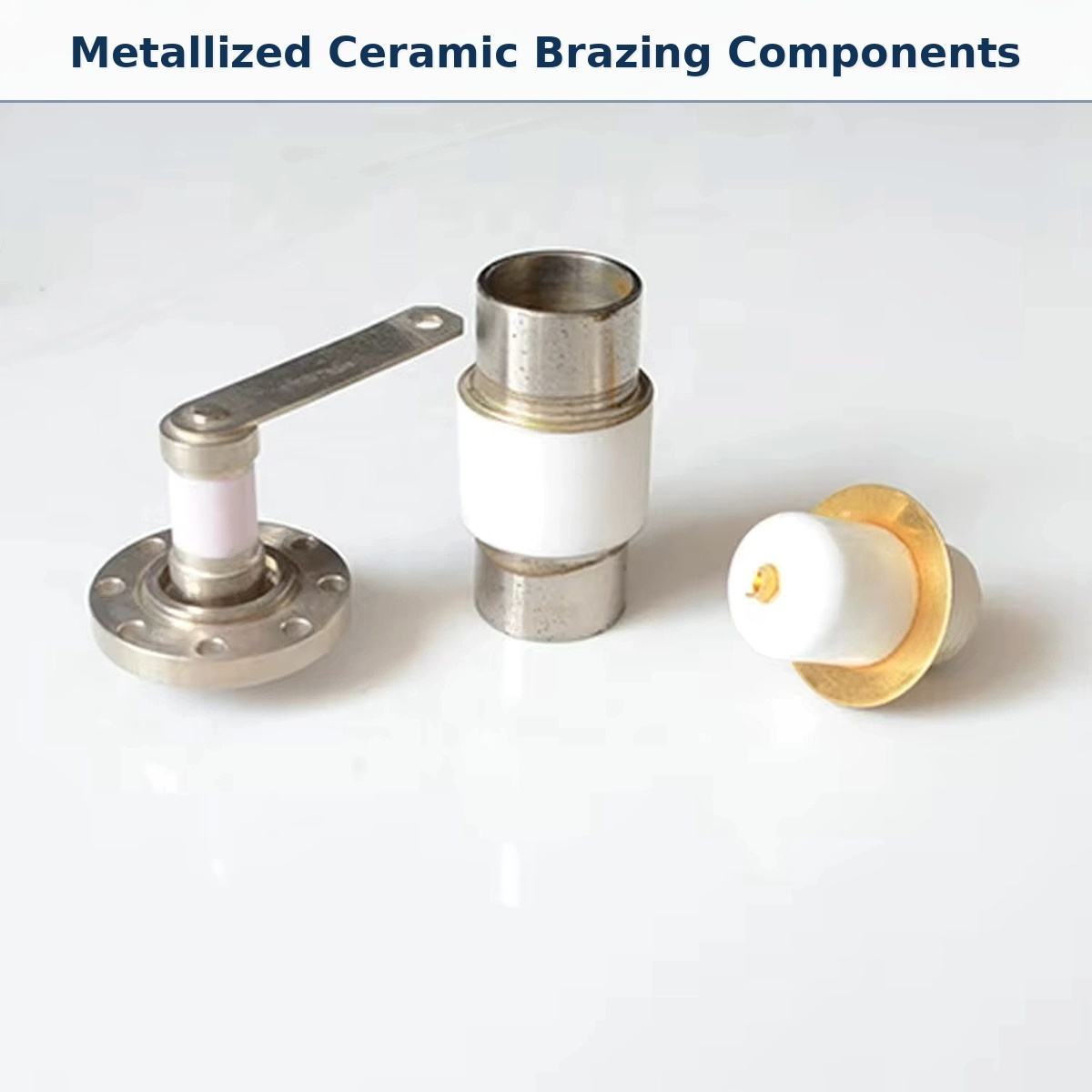

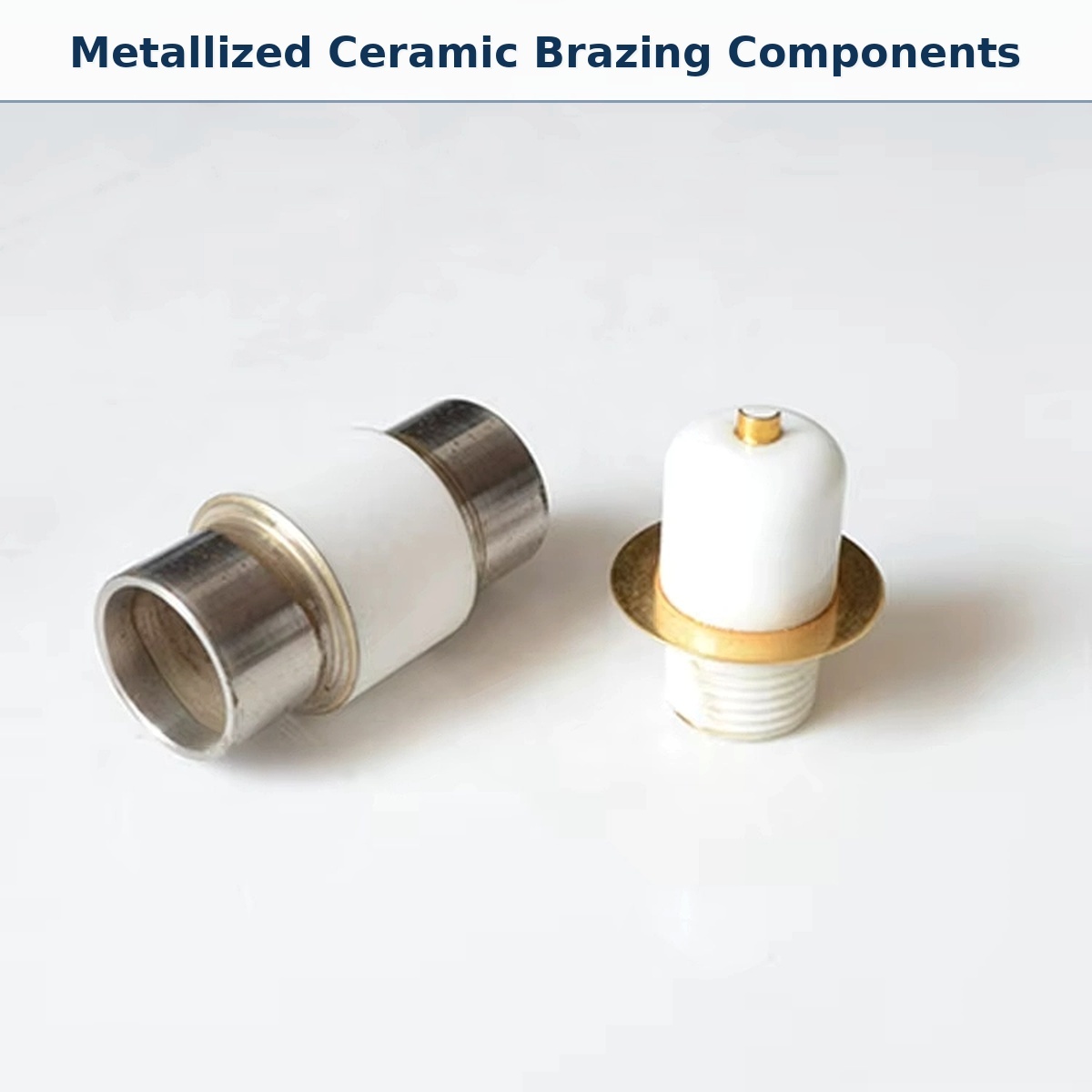

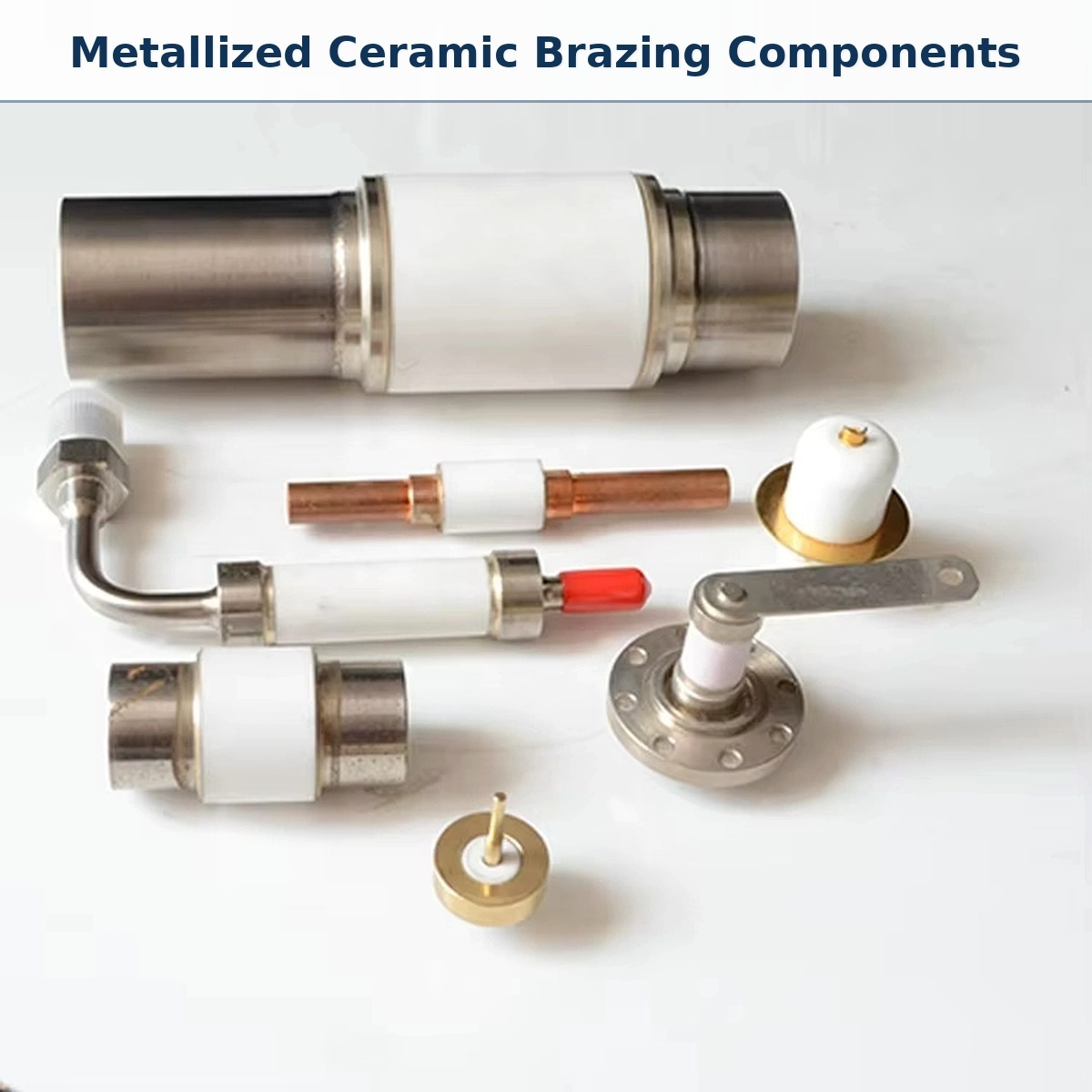

Metallized Ceramic Brazing Components are precision ceramic parts with a metallized surface prepared for ceramic-to-metal brazing, soldering, electrical connection, and further assembly. These components are typically supplied as ceramic bases, rings, sleeves, plates, tubes, pins, or special-shaped parts before final integration with metal structures.
Unlike finished ceramic-to-metal hermetic sealing assemblies, this product focuses on the metallized ceramic part itself. The metallized layer provides a reliable bonding surface for later brazing or soldering, while the ceramic body maintains electrical insulation, thermal stability, and mechanical support in demanding applications.
The base material can be selected according to insulation, thermal conductivity, mechanical strength, and assembly requirements. Alumina Ceramic is commonly used for high insulation strength, stable performance, and cost-effective ceramic-to-metal bonding. Aluminum Nitride Ceramic is suitable for applications that require both electrical insulation and better heat dissipation.
Metallized ceramic brazing components are used when a ceramic part needs to provide insulation while also connecting with metal parts. They are widely used in electronic packaging, vacuum equipment, sensor bases, power modules, RF and microwave parts, laser assemblies, high-voltage insulation structures, and precision electrical connection systems.
For more electronic and insulation-related applications, please visit our Electronic Engineering solutions page.
The key value of metallized ceramic brazing components is the combination of ceramic insulation and metal bonding capability. CERAMPRO can support customers from ceramic material selection, metallized area design, precision machining, plating selection, sample production, and batch manufacturing.
This product is suitable for engineers and buyers who need a ceramic part that can be brazed, soldered, or assembled with metal components. It is especially useful when standard ceramic parts cannot meet electrical connection, packaging, or structural integration requirements.
| Product Type | Metallized ceramic brazing components |
| Base Materials | Alumina ceramic, aluminum nitride ceramic |
| Common Shapes | Rings, tubes, sleeves, plates, bases, pins, bushings, and special-shaped ceramic parts |
| Metallization Area | End face, inner surface, outer surface, local area, or drawing-based pattern |
| Optional Plating | Nickel plating, gold plating, silver plating, or customized surface treatment |
| Main Function | Ceramic-to-metal brazing, soldering, insulation, electrical connection, and assembly support |
| Typical Applications | Electronic packaging, vacuum devices, sensors, power modules, RF parts, laser assemblies, and high-voltage insulation |
| Customization | Material, size, shape, metallized area, plating layer, and structure can be made according to drawings |
| Material | Main Advantage | Recommended Use |
| Alumina Ceramic | High insulation, good mechanical strength, stable processing cost | Sensor bases, vacuum parts, high-voltage insulation, general metallized ceramic parts |
| Aluminum Nitride Ceramic | Higher thermal conductivity while maintaining electrical insulation | Power modules, laser packaging, heat dissipation structures, electronic packaging |
| Zirconia Ceramic | High toughness and wear resistance | Mechanical wear parts; not usually the first choice for metallized brazing components |
| Silicon Nitride Ceramic | High strength and thermal shock resistance | Structural parts where brazing or metallized bonding is not the main requirement |
They are ceramic parts with a metallized surface that allows the ceramic body to be brazed, soldered, or connected with metal parts.
No. These parts are mainly metallized ceramic components prepared for further brazing or assembly. Finished hermetic sealing assemblies usually include completed ceramic-metal joining and sealing structures.
Common materials include alumina ceramic and aluminum nitride ceramic. The final material depends on insulation, thermal conductivity, mechanical strength, and working environment.
Yes. The metallized area can be made on the end face, inner diameter, outer diameter, local surface, or special pattern according to customer drawings.
Yes. Nickel plating, gold plating, silver plating, or other surface finishing can be provided based on brazing, soldering, or assembly requirements.
They are used in electronic packaging, vacuum devices, power modules, sensors, RF and microwave components, laser systems, and high-voltage insulation assemblies.
Yes. Aluminum nitride ceramic can be metallized for applications that require electrical insulation and improved thermal conductivity.
Yes. Rings, tubes, sleeves, plates, bases, pins, bushings, and special-shaped parts can be produced according to drawings or samples.
Please provide material, drawing, dimensions, tolerance, metallized area, plating requirement, application environment, and order quantity.
Yes. Alumina and aluminum nitride ceramics provide good electrical insulation, but the final structure should be confirmed according to voltage level, assembly design, and working conditions.
