Material Characteristics:
High thermal conductivity for rapid heat dissipation, excellent electrical insulation, low thermal expansion matching semiconductor materials, high temperature stability up to 1800℃, strong chemical inertness, smooth surface suitable for precision vacuum adsorption

Application Fields:
High-temperature electronic component gripping, semiconductor manufacturing vacuum holding, LED chip and power module positioning, precision microelectronic workpiece clamping

Application Industries:
Semiconductor manufacturing, LED lighting and packaging, power electronics, aerospace electronics, precision machinery and microelectronic systems

Processing Difficulties:
High material hardness and machining difficulty, high-temperature sintering requires dimensional stability, precision grinding and polishing to avoid surface defects, vacuum surface flatness requires tight control

Processing Flow:
High-purity AlN powder preparation, forming by die pressing or cold isostatic pressing, high-temperature sintering, precision cutting and machining, vacuum surface grinding and polishing, dimensional and performance inspection

Delivery Period:
Standard specifications: 15–25 days, customized specifications: 20–35 days

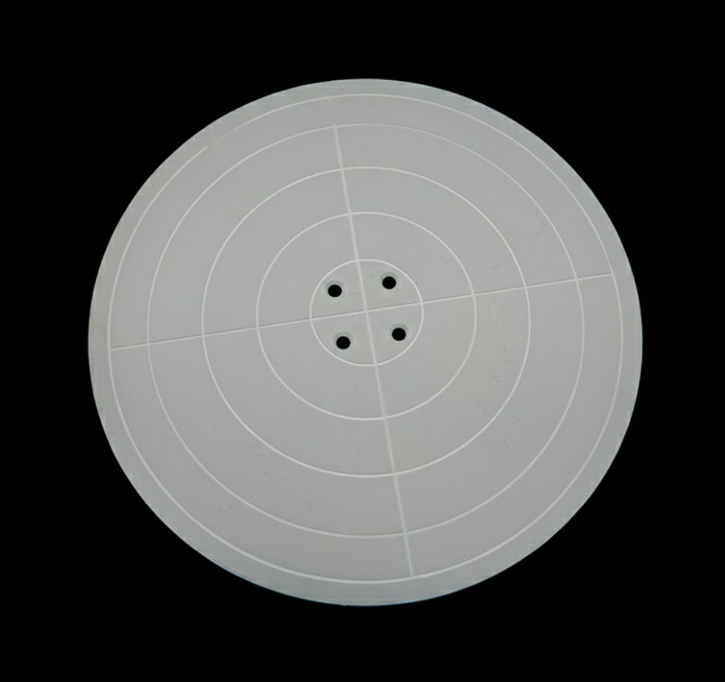

The insulating and thermally conductive vacuum chuck made from high-purity aluminum nitride ceramic offers precise microelectronic positioning. Ideal for industrial applications requiring reliable heat dissipation and electrical insulation with customizable options from an experienced aluminum nitride ceramic manufacturer.

GET A QUOTE

Description

The insulating and thermally conductive Aluminum Nitride (AlN) ceramic vacuum chuck is made from high-purity AlN ceramic, offering high thermal conductivity, excellent electrical insulation, and low thermal expansion. It is designed for vacuum gripping and precise positioning of semiconductors, LED chips, and microelectronic workpieces. The smooth, flat surface ensures reliable adsorption and stability under high-temperature operating conditions.

Key Features:

High Thermal Conductivity – Efficient heat dissipation for high-power electronics and high-temperature operations.
Excellent Electrical Insulation – High resistivity and dielectric strength provide reliable electronic isolation.
Low Thermal Expansion – Compatible with semiconductor materials to minimize thermal stress and maintain dimensional stability.
High Temperature Stability – Performs reliably at continuous operation up to 1800℃.
Chemical Inertness – Resistant to acids, alkalis, and corrosive gases, ensuring long-term durability.
Precision Surface Finish – Smooth, flat vacuum surface enables stable adsorption and precise positioning of microelectronic components.
Dimensional Accuracy – Tight tolerances (±0.05 mm) ensure precise fit in semiconductor and precision industrial equipment.

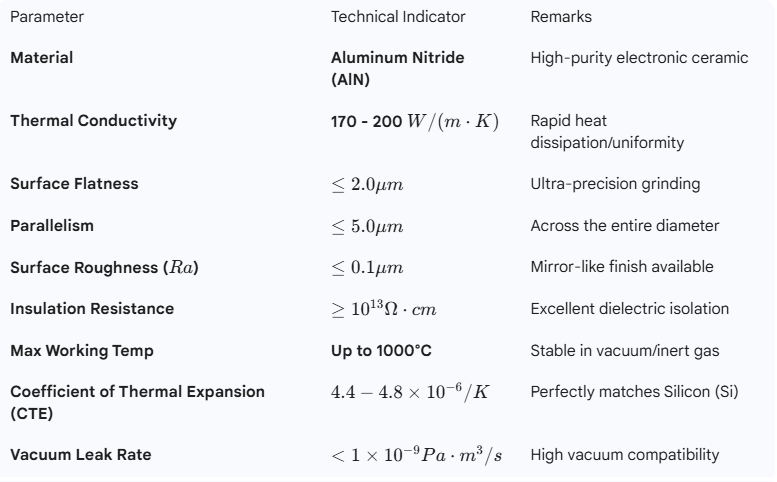

Core Technical Specifications

Our Market Advantages

Factory-Direct Pricing: Get the best rates directly from the source—no hidden markups.
Flexible MOQs: We accommodate businesses of all sizes with scalable order volumes.
Global Supply Chain: Reliable production capacity to ensure your project stays on schedule.
Higher Margins: Our cost-effective solutions are built to boost your bottom line.

Functional Precision for Microelectronic Handling
This vacuum chuck, composed of premium industrial ceramic materials, is engineered for precision adsorption and positioning of sensitive microelectronic components like semiconductor wafers and LED chips. Designed primarily for professional manufacturing environments demanding robust thermal management and electrical insulation, it supports critical processing workflows in semiconductor assembly and testing. Its capability to reliably maintain contact under vacuum at elevated temperatures ensures consistent operational stability for engineers and production specialists focused on yield and throughput improvements. The product suits industries requiring stringent dimensional accuracy and ensures seamless integration into existing process lines.

Advanced Thermal and Electrical Specifications
Constructed from high-purity aluminum nitride ceramic, this chuck delivers superior thermal conductivity for efficient heat dissipation alongside excellent dielectric properties to maintain electrical isolation. The material’s low thermal expansion coefficient complements semiconductor materials, reducing thermal stress during cycling up to a continuous operation temperature of 1800℃. Precision manufacturing ensures a smooth, flat vacuum surface with tolerances within ±0.05 mm, optimizing stable adsorption and minimizing mechanical distortions. Chemical inertness further contributes to longevity in corrosive processing atmospheres. Together, these specifications enable consistent performance in challenging thermal and vacuum environments.

Industrial Application and Operational Value
The vacuum chuck is integrated extensively within semiconductor fabrication, LED assembly, and advanced microelectronics packaging sectors where control of temperature and electrical isolation is mandatory. It enables stable vacuum gripping in wafer bonding, dicing, and high-temperature fixture testing scenarios. This industrial ceramic solution supports automation systems and precision positioning requirements, reducing downtime through durability and customization options suited to diverse manufacturing processes. The chuck’s reliability contributes to maintaining strict quality control and throughput efficiency across complex, high-volume production lines.

Product Advantages
Structural and Design Optimization for Precision Systems
The vacuum chuck’s design incorporates the intrinsic properties of custom aluminum nitride ceramic, enabling precise thermal expansion matching with semiconductor substrates. Its monolithic ceramic structure provides excellent dimensional stability, eliminating common mechanical distortions encountered in multi-material assemblies. The geometry and surface finish can be tailored to exact specifications, facilitating integration within diverse vacuum handling systems and automated manufacturing cells. This flexibility supports a wide range of process requirements, minimizing adaptation efforts and ensuring compatibility with existing tooling and assembly line setups in industrial ceramic manufacturing frameworks.

Enhanced Performance and Operational Stability
Utilizing industrial ceramic materials with high thermal conductivity and electrical insulation enhances device reliability during high-temperature processing stages. The chuck’s stable vacuum surface improves adsorption consistency, increasing yield and reducing handling errors. Its chemical inertness and high-temperature stability reduce maintenance intervals and part replacement frequency, contributing to lower total cost of ownership. Users benefit from a solution engineered to meet rigorous industrial standards and long-term reliability demands. The precision surface engineering further aids in reproducible positioning critical for advanced microelectronic manufacturing and testing workflows.

Use Scenarios
Precision Microelectronic Assembly and Testing Environments
In semiconductor and LED chip manufacturing lines, maintaining stable adsorption and accurate positioning under vacuum is critical for assembly and quality control processes. The industrial ceramic solution provided by this aluminum nitride ceramic vacuum chuck supports high-temperature conditions common in these environments, facilitating effective heat dissipation and electrical isolation. Its customizable geometry enables seamless integration into automated vacuum handling stations, ensuring process reproducibility and reducing wafer damage risks. This enhances operational efficiency and device integrity across production stages requiring precise microelectronic manipulation.

Integration in High-Temperature Fixture and Prototype Testing
During high-temperature fixture testing and prototyping, control over thermal cycling and mechanical stress is essential. This vacuum chuck, crafted from wholesale aluminum nitride ceramic with superior chemical inertness and thermal stability, provides stable vacuum clamping without introducing contaminations or mechanical distortions. The product supports diverse testing setups such as wafer bonding and dicing prototypes by maintaining dimensional accuracy and clean surface contact at elevated temperatures. Its application ensures compliance with rigorous test conditions, aiding in design validation and process optimization for precision machinery sectors.

FAQ
What materials are used in your insulating and thermally conductive vacuum chuck?
Our vacuum chuck is made from high-purity aluminum nitride ceramic, chosen for its exceptional thermal conductivity and electrical insulation. We ensure material quality to support stable adsorption and thermal management in demanding industrial environments.

Can you customize the geometry and surface finish of the AlN ceramic vacuum chuck?
Yes, we offer full customization of the vacuum chuck’s geometry, tolerances, and surface finishes. Our in-house expertise in custom aluminum nitride ceramic fabrication allows us to tailor solutions that meet specific vacuum gripping and thermal management requirements.

What installation considerations should I be aware of when using this vacuum chuck?
To ensure optimal performance, install the chuck on a flat, stable surface and confirm compatibility with your vacuum system. Our precisely finished surface and tight dimensional tolerances assist in achieving uniform adsorption and consistent thermal contact during use.

How long is the lead time for ordering your industrial ceramic vacuum chucks?
For standard specifications, the delivery period is 15–25 days. Customized orders, including those requiring special design or finishes, typically take 20–35 days. We maintain flexible production scheduling to support your project timelines.
