This high-pressure pump ceramic piston and plunger is mainly made from zirconia ceramic, alumina ceramic or ZTA ceramic, depending on the pressure level, fluid medium and working conditions. Zirconia ceramic is often preferred for high-pressure pump applications because it offers good toughness, wear resistance and stable performance during repeated plunger movement.
This ceramic piston and plunger is commonly used in ceramic pump components, high-pressure pumps, metering pumps, chemical pumps, industrial cleaning pumps, water treatment systems, fluid control equipment and precision machinery.
Sample production usually takes 15–25 working days after drawings, material and tolerance requirements are confirmed.
Bulk order lead time is usually 25–40 working days, depending on quantity, material selection, machining difficulty and inspection requirements.
CERAMPRO custom high-pressure pump ceramic pistons and plungers are designed for pump systems where metal plungers may face wear, corrosion, surface scoring or unstable sealing during long-term operation.
These ceramic plungers can be made from zirconia ceramic, alumina ceramic or ZTA ceramic according to pressure level, fluid medium and pump structure. With precision grinding and polishing, the working surface helps reduce friction and supports smoother reciprocating movement.
This product is commonly used in ceramic pump components, high-pressure pumps, metering pumps, chemical pumps, industrial cleaning pumps, water treatment systems and precision fluid control equipment.
Different ceramic materials can be selected based on pressure, medium, wear condition and mechanical load.
| Material | Typical Use |
|---|---|
| Y-TZP Zirconia Ceramic | Suitable for high-pressure pump plungers requiring better toughness, wear resistance and stable movement. |
| 99.7% Alumina Ceramic | Suitable for pump components requiring high hardness, corrosion resistance and dimensional stability. |
| ZTA Ceramic | Suitable for applications that require a balance of hardness, toughness and mechanical strength. |
High-pressure pump ceramic pistons and plungers are used in pump and fluid systems that require wear resistance, corrosion resistance and stable reciprocating movement.
Ceramic materials provide good hardness and wear resistance, helping reduce surface wear during repeated piston or plunger movement.
Zirconia and alumina ceramic can be used in many fluid and chemical environments where metal plungers may corrode or degrade.
The working surface can be precision-ground, honed or mirror-polished to support smoother movement and better sealing contact.
Ceramic plungers maintain stable dimensions under suitable working conditions, helping improve pump operation consistency.
CERAMPRO supports custom ceramic pistons and plungers based on drawings, samples or specific pump application requirements.
Specifications can be customized according to drawings, samples and pump working conditions.

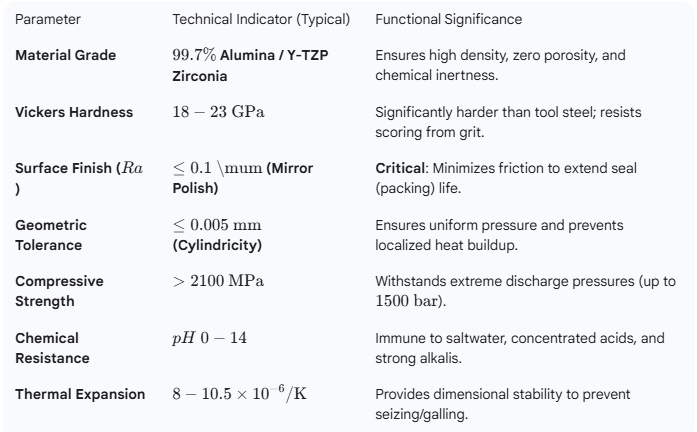

| Parameter | Technical Indicator | Application Value |
|---|---|---|
| Material Grade | 99.7% Alumina Ceramic / Y-TZP Zirconia Ceramic / ZTA | Selected based on pressure, medium and wear conditions. |
| Product Type | Ceramic piston, ceramic plunger, pump ceramic shaft | Used in high-pressure pumps, metering pumps and fluid control systems. |
| Vickers Hardness | Approx. 18–23 GPa | Helps improve wear resistance during pump movement. |
| Surface Finish | Ra ≤ 0.1 μm, mirror polish available | Supports smoother motion and better sealing contact. |
| Geometric Tolerance | Cylindricity up to ≤ 0.005 mm | Helps maintain stable assembly and pump operation. |
| Compressive Strength | Typical value above 2100 MPa | Suitable for repeated pressure and mechanical load. |
| Chemical Resistance | Suitable for many fluids within pH 0–14 | Helps reduce corrosion-related failure. |
| Thermal Expansion | Approx. 8–10.5 × 10⁻⁶ / K | Provides stable dimensional performance. |
| Application | Ceramic pump components, high-pressure pumps, metering pumps | For systems where metal plungers may wear or corrode. |
A ceramic plunger is used in pump systems to support reciprocating movement, reduce wear and improve corrosion resistance in fluid control applications.
Ceramic plungers offer good wear resistance, corrosion resistance and surface stability, making them suitable for applications where metal plungers may wear, corrode or score.
Yes. Zirconia ceramic is often used for high-pressure pump plungers because it provides good toughness, wear resistance and stable performance during repeated movement.
Yes. Alumina ceramic can be used for pump pistons, plungers and wear-resistant pump components, depending on pressure, fluid medium and design requirements.
Yes. CERAMPRO can customize diameter, length, tolerance, end shape and surface finish according to customer drawings or samples.
Yes. The working surface can be precision-ground, honed or polished to support smoother movement and sealing contact.
This product is suitable for high-pressure pumps, metering pumps, dosing pumps, chemical pumps, industrial cleaning pumps and water treatment pump systems.
Please provide drawings, material requirements, quantity, tolerance, surface finish, working pressure, fluid medium and application details.
Sample production usually takes 15–25 working days after drawings, material and technical requirements are confirmed.
Yes. CERAMPRO supports OEM and ODM production for ceramic pump components, including ceramic plungers, pistons, sleeves, valve parts and other precision ceramic parts.
