Place of Origin: Guangdong, China
Material Introduction: Silicon nitride tubes are made from silicon nitride ceramic (Si3N4).
Key Features: Silicon nitride ceramic tubes offer good thermal shock resistance, high mechanical strength, fracture toughness, low thermal expansion, and wear resistance. These properties make them suitable for industrial equipment exposed to repeated temperature changes and mechanical stress. For applications mainly requiring high-temperature electrical insulation, see our Industrial Alumina Ceramic Tubes .
Application Industries: Thermocouple protection tubes, heating protection tubes, molten aluminum riser tubes, molten metal transfer tubes, industrial furnace tubes, and high-temperature gas sensors. Suitability depends on the material grade, component design, and operating conditions.
Global OEM Supply: Custom silicon nitride tubes are manufactured according to customer drawings, including specified diameters, wall thicknesses, lengths, and end configurations. Serving OEM customers in the USA, Germany, Japan, and Europe. Explore other material options in our Ceramic Tube Collection .
Delivery Time: Lead time is confirmed based on material specifications, dimensions, machining requirements, and order quantity.

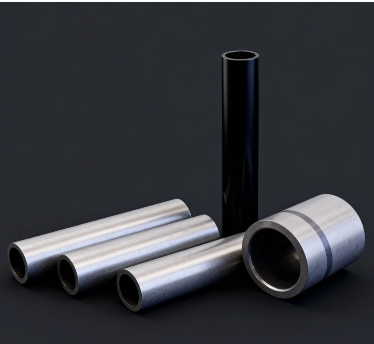

Silicon nitride tubes are made from Si3N4 ceramic and used in industrial equipment where repeated temperature changes and mechanical loads can cause problems for conventional ceramic components. Typical applications include thermocouple protection, molten aluminum handling, and furnace assemblies. With good thermal shock resistance, low thermal expansion, and high mechanical strength, these tubes are suitable for demanding operating conditions. Sizes and end configurations can be customized to suit specific equipment designs.
Silicon nitride ceramics are produced through different manufacturing processes. Two commonly used types are gas-pressure-sintered silicon nitride (GPSN) and reaction-bonded silicon nitride (RBSN).
GPSN: A dense grade generally used when higher mechanical strength and fracture toughness are required.
RBSN: A reaction-bonded grade that typically contains more residual porosity. It can be useful for certain shapes and manufacturing requirements.
Material selection depends on the operating conditions and the properties required. The technical figures below refer to typical dense GPSN material.
Silicon nitride thermocouple protection tubes are used to separate temperature sensors from direct contact with certain process environments. The tube dimensions and wall thickness are selected according to the sensor assembly and installation requirements.
Silicon nitride riser tubes and molten metal transfer tubes are used in selected aluminum processing equipment. The material grade and tube design should be checked against the melt composition, temperature, and operating cycle.
In furnace equipment, silicon nitride tubes may be used for protection or mechanical support where repeated heating and cooling are part of normal operation.
Custom ceramic tubes can also be used in certain heating and high-temperature gas sensor assemblies. The final design depends on the surrounding components, operating atmosphere, and installation method.
Fracture Toughness: Dense silicon nitride generally has better resistance to crack propagation than many conventional oxide ceramics, making it useful for parts exposed to mechanical loading.
Low Thermal Expansion: Its relatively low thermal expansion helps reduce thermal strain during temperature changes. Mounting conditions and component geometry still need to be considered.
Wear Resistance: Silicon nitride ceramic has high hardness and can perform well in certain abrasive environments. Actual performance depends on the materials in contact and operating conditions.
Custom Dimensions: Inner diameter, outer diameter, length, wall thickness, and end features can be produced according to customer drawings, subject to manufacturing feasibility.

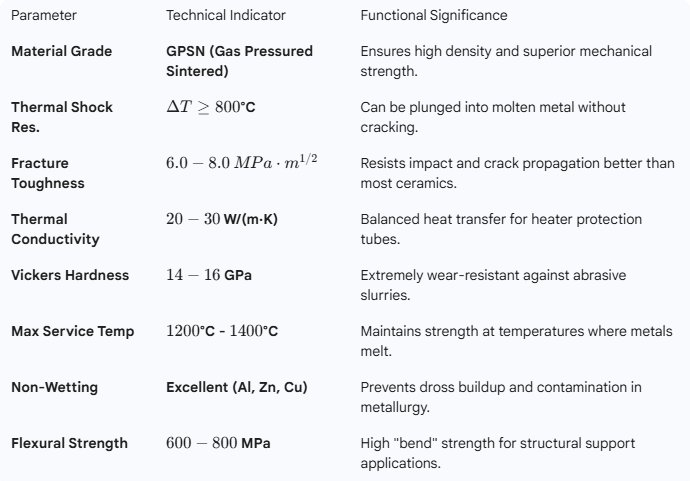

The following values are typical reference ranges for gas-pressure-sintered silicon nitride (GPSN). Actual properties depend on the selected grade and testing conditions.
| Parameter | Technical Indicator | Functional Significance |
|---|---|---|
| Material Grade | GPSN (Gas-Pressure-Sintered Si3N4) | Dense grade for demanding mechanical applications. |
| Thermal Shock Resistance | Depends on test conditions | Affected by temperature change, heating or cooling rate, and tube geometry. |
| Fracture Toughness | 6.0-8.0 MPa·m^1/2 | Resistance to crack propagation. |
| Thermal Conductivity | 20-30 W/(m·K) | Influences heat transfer through the tube. |
| Vickers Hardness | 14-16 GPa | Relevant to surface wear and indentation resistance. |
| Maximum Service Temperature | 1200-1400°C (reference range) | Depends on atmosphere, load, and exposure time. |
| Molten Metal Wettability | Depends on metal and ceramic grade | Requires evaluation for the intended molten metal. |
| Flexural Strength | 600-800 MPa | Material reference value; finished-part strength varies with design. |
Technical values are provided for reference. Final specifications should be confirmed according to the selected material grade and application requirements.
Silicon nitride is often considered when thermal cycling and mechanical loads are important. Other ceramics may be more suitable depending on the equipment requirements.
| Material | Main Characteristics | Typical Selection Considerations |
|---|---|---|
| Silicon Nitride (Si3N4) | High fracture toughness and low thermal expansion. | Thermal cycling and mechanically loaded components. |
| Alumina (Al2O3) | Good electrical insulation and hardness. | Insulating components where cost is also important. |
| Silicon Carbide (SiC) | High thermal conductivity and wear resistance. | Heat transfer and selected wear-related applications. |
For applications focused on electrical insulation, see our Industrial Alumina Ceramic Tubes . Other available materials can be found in our Ceramic Tube Collection .
Silicon nitride generally offers higher fracture toughness and lower thermal expansion. Alumina is often a more economical option when electrical insulation is the main requirement.
They have good thermal shock resistance, but the allowable temperature change depends on the material grade, tube dimensions, and heating or cooling conditions.
Certain grades can be used in molten aluminum processing. The melt composition, temperature, and operating cycle should be reviewed before selecting the material.
Yes. We can review drawings for custom diameters, wall thicknesses, lengths, and end configurations. Tolerances are confirmed after checking the design.
A drawing or basic dimensions, quantity, operating temperature, application, and contact medium are usually enough to begin a technical review.
Yes. CERAMPRO supplies custom silicon nitride ceramic tubes to OEM customers in the USA, Germany, Japan, and Europe. Customers can send drawings and application details for review before quotation.
Avoid excessive clamping force and allow for differences in thermal expansion between the ceramic tube and surrounding metal parts. The mounting arrangement should suit the actual operating conditions.
For custom silicon nitride tube requirements, please send your drawings, application details, and quantity to sales@cerampro.com .
