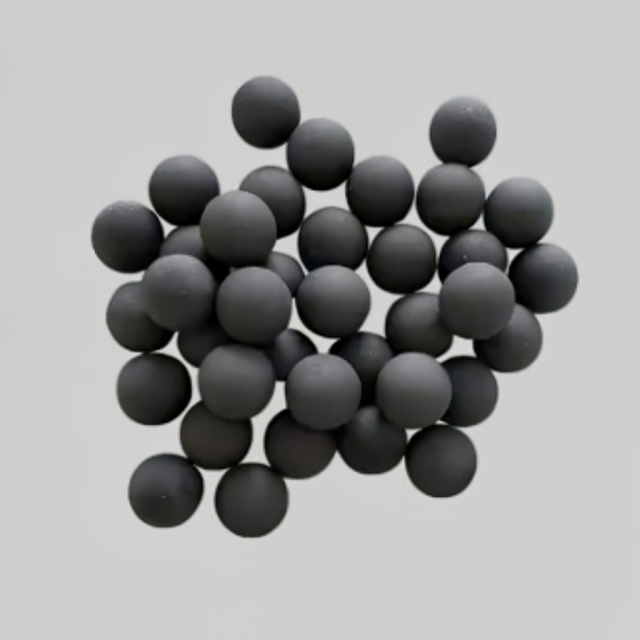

Product Name: Boron Carbide Grinding Media Balls / B₄C Ceramic Balls
Product Material: High-purity, sintered Boron Carbide (B₄C).
Material Properties: Characterized by extreme hardness (≈30-40 GPa), excellent wear resistance, low density (≈2.52 g/cm³), high chemical inertness, and outstanding neutron absorption capability.
Application Fields: Primarily used as high-performance grinding media for milling and dispersing, and as functional components in bearings, valves, and nuclear instrumentation.
Application Industries: Advanced Materials Processing (e.g., electronics, pharmaceuticals, pigments), Nuclear Energy (reactor components, measurement spheres), and Precision Engineering (special bearings, metrology).
Processing Difficulty: Extremely high. Achieving perfect sphericity, precise diameter tolerances, and a flawless surface finish on a super-hard and brittle material requires specialized, multi-stage diamond grinding and lapping processes, leading to high costs.
Processing Flow: B₄C powder preparation → Granulation → Forming (e.g., isostatic pressing) → High-temperature sintering → Rough diamond grinding to spherical shape → Precision lapping/polishing to final G-grade tolerance → 100% dimensional and visual inspection.
Delivery Period: Typically 8 to 14 weeks, depending on ball diameter, precision grade (e.g., G5, G10), quantity, and required surface finish. Standard sizes may have shorter lead times.
Boron Carbide Ceramic Balls are ultra-high-performance spherical components engineered for critical applications demanding the ultimate in wear resistance, chemical stability, and precision under severe operating conditions. Manufactured from sintered boron carbide (B₄C), these balls leverage the material’s near-diamond hardness to deliver unparalleled service life and contamination-free processing in roles ranging from abrasive grinding media to specialized mechanical and nuclear components. They are specifically chosen to outperform traditional grinding media like alumina, zirconia, or steel balls, and functional balls made from silicon nitride or tungsten carbide, in the most challenging environments where wear, corrosion, or neutron absorption are primary concerns.
Key Features:
Superior Wear Resistance & Minimal Contamination - The extreme hardness of B₄C results in exceptionally low wear rates during grinding and milling operations. This translates to significantly extended service life, reduced media consumption, and minimal product contamination from abrasive debris, which is crucial for high-value materials processing in electronics or pharmaceuticals where purity is paramount.
High Chemical Inertness & Corrosion Resistance - Boron carbide is highly resistant to attack by acids, alkalis, and other corrosive agents. This allows B₄C ceramic balls to maintain integrity and performance in wet milling, chemical processing, or harsh industrial environments where metal or other ceramic media would degrade, ensuring process stability and product consistency.
Low Density for Efficient Milling - With a density approximately one-third that of tungsten carbide, B₄C balls offer a distinct advantage in grinding applications. The lower density reduces the impact force per ball, which can lead to finer, more controllable particle size reduction with less risk of over-milling or damaging sensitive active ingredients, while still providing the necessary hardness for effective comminution.
Excellent Neutron Absorption for Nuclear Applications - The high thermal neutron capture cross-section of the boron-10 isotope makes these balls invaluable in the nuclear industry. They are used as neutron-absorbing control elements or measuring spheres in reactors and research instrumentation, providing reliable performance in radiation-intensive settings due to their material stability and functional property.

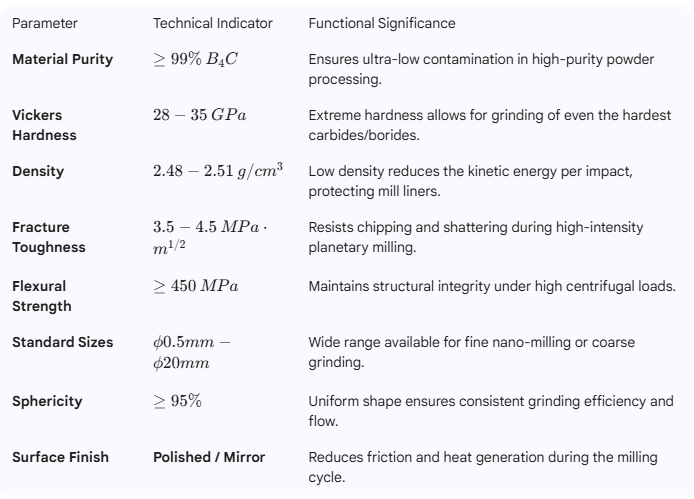

Core Technical Specifications
Our Market Advantages
