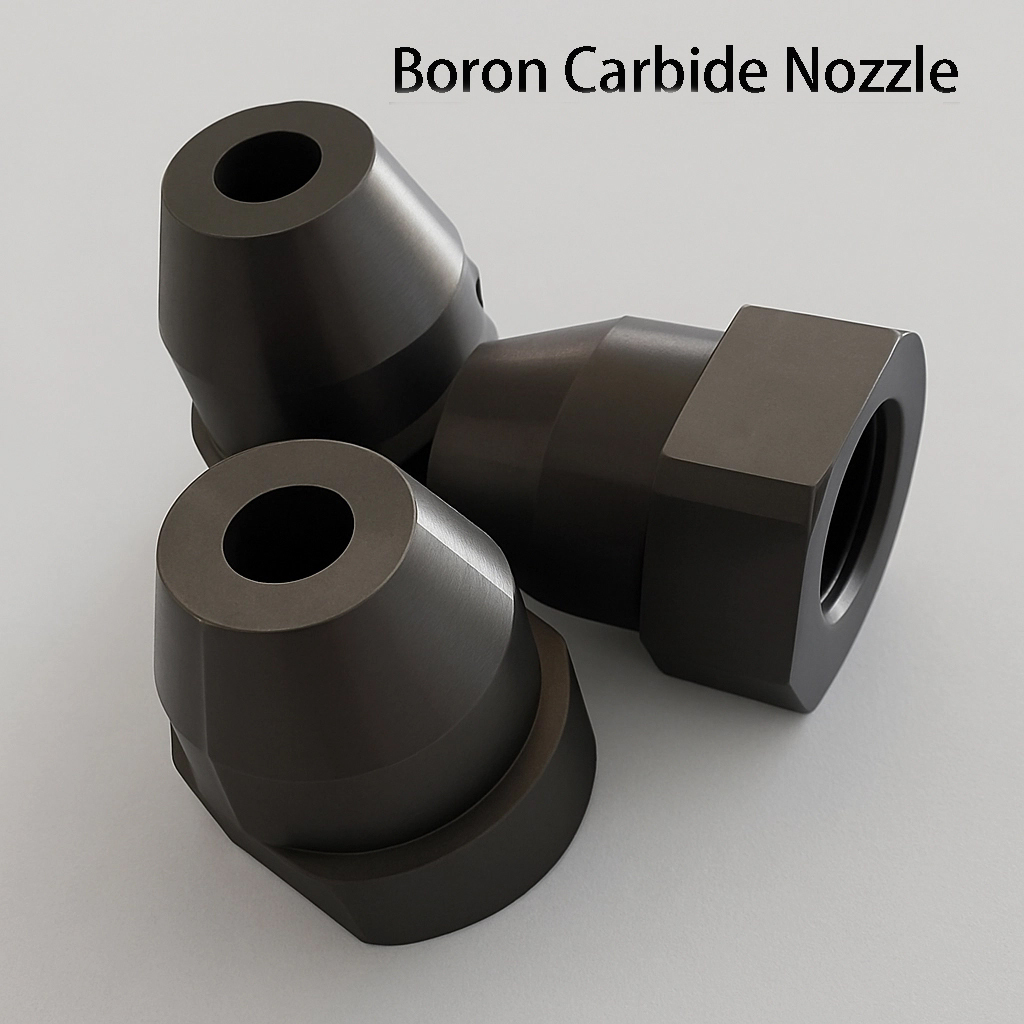

The Boron Carbide Ceramic Nozzle, also called a B4C ceramic nozzle, is used in sandblasting, abrasive blasting, shot peening, surface cleaning, and other applications where the nozzle is exposed to continuous abrasive wear. It is designed to handle high-speed abrasive particles while keeping the bore shape stable for longer service time.
In blasting equipment, nozzle wear can directly affect air consumption, abrasive usage, blasting efficiency, and surface finish quality. A worn nozzle may enlarge quickly, causing unstable blasting patterns and higher operating costs. Boron carbide ceramic helps reduce this problem because of its excellent hardness and erosion resistance.
CERAMPRO provides standard and custom ceramic nozzle solutions for blasting guns, automated blasting systems, surface treatment equipment, and replacement nozzle applications. We can manufacture B4C nozzles according to drawings, samples, bore size, thread structure, or equipment interface requirements.
This nozzle is made from high-hardness boron carbide ceramic. B4C ceramic is widely selected for severe abrasive environments because it combines high wear resistance, low density, and good resistance to high-speed particle erosion.
| Material Type | Boron Carbide Ceramic / B4C Ceramic |
|---|---|
| Main Function | Wear-resistant nozzle material for abrasive blasting and high-speed particle flow |
| Common Structures | Straight bore nozzle, venturi nozzle, threaded nozzle, sleeve nozzle, tapered nozzle, or custom nozzle shape |
| Processing Method | Powder forming, sintering, precision machining, bore finishing, and dimensional inspection |
| Custom Options | Inner diameter, outer diameter, total length, bore profile, thread, inlet shape, outlet shape, and mounting structure |
Boron carbide ceramic nozzles are suitable for blasting systems where steel, cast iron, or lower-grade ceramic nozzles wear too fast. They are commonly used with sand, alumina, silicon carbide, steel grit, glass beads, and other abrasive media.
The main value of a boron carbide nozzle is not only its hardness. In real blasting applications, a more wear-resistant nozzle helps keep the bore size stable, reduce air loss, improve blasting consistency, and lower replacement frequency. This makes it a practical choice for customers who need longer service life and more stable surface treatment performance.
| Product Name | Boron Carbide Ceramic Nozzle / B4C Ceramic Nozzle |
|---|---|
| Material | Boron Carbide Ceramic / B4C Ceramic |
| Available Shapes | Straight nozzle, venturi nozzle, sleeve nozzle, threaded nozzle, tapered nozzle, and custom nozzle design |
| Bore Structure | Straight bore, long venturi bore, short venturi bore, tapered bore, or custom internal flow channel |
| Mounting Options | Threaded mounting, sleeve fitting, press-fit structure, metal jacket assembly, or custom equipment interface |
| Surface Finish | Fine-machined outer surface and bore finishing according to application requirements |
| Working Media | Sand, alumina, silicon carbide, steel grit, glass beads, and other abrasive blasting media |
| Application Environment | Sandblasting, abrasive blasting, shot peening, surface cleaning, and high-wear particle flow systems |
| Size Range | Customized according to drawings, samples, blasting gun design, or equipment requirements |
| Inspection Items | Inner bore, outer diameter, length, thread, concentricity, appearance, and surface quality |
| Customization | Bore diameter, nozzle length, venturi profile, inlet angle, outlet size, thread, and mounting structure can be customized |
| Material | Main Strength | Limitation | Suitable Use |
|---|---|---|---|
| Boron Carbide Ceramic | Excellent wear resistance, high hardness, lightweight, long service life | Higher cost than common metal or alumina nozzles | Sandblasting nozzles, abrasive blasting nozzles, shot peening nozzles |
| Tungsten Carbide | Good wear resistance and strong mechanical toughness | Heavier than boron carbide ceramic | General blasting nozzles and heavy-duty abrasive applications |
| Silicon Carbide Ceramic | Good hardness, thermal stability, and wear resistance | Service life may vary depending on abrasive media and blasting pressure | Wear-resistant ceramic nozzles and abrasive flow parts |
| Alumina Ceramic | Cost-effective, insulating, and suitable for general wear applications | Lower wear resistance than boron carbide in severe blasting conditions | General ceramic parts, insulating nozzles, and lower-wear applications |
| Steel Nozzle | Easy to process and lower initial cost | Wears quickly under abrasive blasting media | Short-term use or low-wear blasting conditions |
It is mainly used for sandblasting, abrasive blasting, shot peening, rust removal, paint stripping, surface cleaning, and other high-wear particle flow applications.
Boron carbide ceramic provides much better wear resistance than many metal nozzles. It helps reduce bore wear, keep the blasting pattern stable, and reduce nozzle replacement frequency.
Yes. B4C ceramic is a common material choice for sandblasting nozzles because it can resist continuous erosion from abrasive media and maintain a stable bore for longer use.
Yes. The inner bore diameter, bore length, venturi profile, inlet angle, and outlet size can be customized according to your blasting equipment and flow requirements.
Yes. Threaded structures, sleeve-type mounting, metal jacket assembly, and other custom interfaces can be produced according to drawings or samples.
It can be used with sand, alumina, silicon carbide, steel grit, glass beads, and other common blasting media. The final design should be confirmed based on pressure, media type, and expected service life.
Please provide a drawing, sample photo, bore size, outer diameter, total length, thread details, quantity, working pressure, and abrasive media type. You can also contact us if you only have a sample or basic size information.
Yes. We can evaluate the sample size, bore structure, mounting method, and material requirement to support replacement or customized nozzle production.
Boron carbide ceramic has excellent hardness and wear resistance, but it is still a ceramic material. It should avoid heavy impact during installation and use. A proper mounting design helps improve reliability.
Yes. CERAMPRO supports prototype testing, small-batch orders, and custom boron carbide ceramic nozzle production based on application requirements.
