Product Material:
Biomedical Grade High-Purity Alumina Ceramic (Al₂O₃ ≥99.6%). For critical moving and sealing pairs such as valve cores and seats, Zirconia Toughened Alumina (ZTA) can be employed to enhance fracture toughness and wear life.
Material Characteristics:
Exceptional biocompatibility and hemocompatibility (complying with standards such as ISO 10993), Excellent chemical inertness (resistant to body fluids, blood, cleaning agents, and common disinfectants), High hardness and superior wear resistance, Very high dimensional stability, Good electrical insulation, Surface capable of achieving ultra-high smoothness (Ra < 0.1 µm) to reduce blood adhesion and turbulence, Material is pure and non-toxic with no risk of metal ion or organic leaching, Can withstand autoclave sterilization (high-temperature, high-pressure).
Application Fields:
Precise dispensing, switching, and mixing valves for blood/reagents in in-vitro diagnostic (IVD) equipment (e.g., biochemical analyzers, chemiluminescence immunoanalyzers, hematology analyzers); Ultra-pure water circuit control valves in hemodialysis equipment; Sterile fluid control valves in cell therapy or biopharmaceutical processes; Miniaturized integrated microfluidic valve chips in point-of-care testing (POCT) devices.
Application Industries:
Biomedical (In-vitro Diagnostics, Blood Purification, Biopharmaceuticals), Medical Device Manufacturing.
Delivery Period:
Standard design, biocompatibility-validated valve components: 80-120 days
Newly designed, structurally complex, or custom valves requiring full biosafety evaluation: 150-240 days
The Alumina Ceramic Blood Separation / Diverter Valve is a precision fluid-control component made from high-purity alumina for hematology analyzers, in vitro diagnostic (IVD) systems, blood-processing equipment, and medical analytical instruments. Precision-machined micro-holes, flow grooves, and mating surfaces enable controlled switching and distribution of blood samples, reagents, and cleaning fluids while supporting wear resistance, dimensional stability, and reliable operation during repeated fluid-control cycles.
This ceramic valve is primarily manufactured from 99.5%–99.9% high-purity alumina (Al₂O₃). High-purity alumina is selected for its high hardness, dimensional stability, chemical resistance, and suitability for precision grinding and polishing.
The appropriate alumina grade can be selected according to the fluid medium, operating frequency, mating structure, surface requirements, cleaning conditions, and requirements of the final equipment.
Related material: Alumina Ceramic Components
Used in precision fluid-control systems for switching and routing blood samples, reagents, washing fluids, and waste streams between different analytical channels.
Suitable for fluid-control modules requiring repeatable switching between samples, reagents, cleaning solutions, and multiple analytical flow paths.
Used in fluid-routing assemblies where blood samples or other biological fluids need to be accurately directed between different channels.
Suitable for biochemical analyzers, immunoassay systems, laboratory analyzers, and other instruments requiring precision liquid handling.
Can be evaluated for fluid-routing applications requiring wear-resistant, chemically stable, and dimensionally stable ceramic valve components.
Suitable for OEM designs incorporating micro-holes, precision grooves, multiple flow paths, and precision mating surfaces.
Related solutions: Biomedical Ceramic Components
Precision micro-hole and flow-channel structures support controlled routing of blood samples, reagents, washing fluids, and other analytical liquids between different flow paths.
Precision grinding, lapping, and polishing can produce highly flat working surfaces, supporting stable contact during rotary or sliding valve operation.
High-purity alumina provides high hardness and good wear resistance, making it suitable for ceramic valve components subjected to repeated switching cycles.
Ceramic fluid-contact surfaces avoid metallic corrosion products and provide a stable non-metallic interface for analytical fluid-control systems.
Alumina provides good resistance to many analytical reagents, buffers, cleaning solutions, and other fluids commonly used in analytical equipment.
We support precision machining of micro-holes, curved grooves, narrow slots, and multi-channel structures according to the required fluid-routing design.
Precision grinding, lapping, and polishing are available for critical working surfaces. Flatness and surface roughness requirements can be evaluated according to the actual part design.
For ceramic valve discs operating as sliding or rotary mating pairs, components can be manufactured and inspected together according to assembly clearance, flatness, and surface-finish requirements.
Outer diameter, thickness, hole diameter, hole position, flow grooves, positioning features, and critical dimensional tolerances can be customized according to customer 2D/3D drawings.
We support engineering samples, prototype validation, small-batch qualification, and repeat OEM production for ongoing projects.
Critical dimensions, flatness, surface roughness, and mating surfaces can be inspected according to drawing and project requirements.

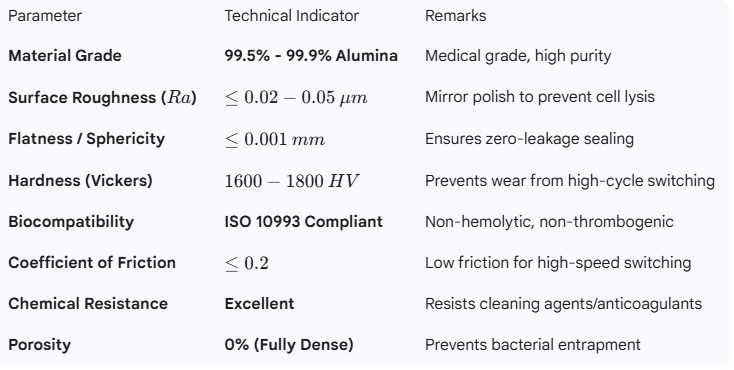

| Parameter | Typical / Target Technical Indicator | Remarks |
|---|---|---|
| Material Grade | 99.5%–99.9% Alumina (Al₂O₃) | High-purity alumina for precision analytical equipment |
| Surface Roughness (Ra) | ≤ 0.02–0.05 μm | Provides smooth fluid-contact and mating surfaces |
| Flatness | ≤ 0.001 mm* | For specified precision mating / sealing surfaces |
| Vickers Hardness | 1600–1800 HV | Supports wear resistance during repeated switching |
| Biocompatibility | ISO 10993 requirements can be evaluated by project | Depends on selected material and final application requirements |
| Coefficient of Friction | ≤ 0.2 | Depends on mating materials and surface condition |
| Chemical Resistance | Excellent | Compatibility should be confirmed with the actual process fluid |
* Final achievable specifications depend on part dimensions, geometry, alumina grade, mating structure, processing requirements, and inspection method.
| Material | Key Advantages | Considerations | Recommended Applications |
|---|---|---|---|
| High-Purity Alumina | High hardness, chemical stability, dimensional stability, wear resistance, and excellent surface-finishing capability | Lower fracture toughness than zirconia | Blood separation valves, analyzer valve discs, and precision fluid-control components |
| Zirconia | Higher fracture toughness, excellent wear resistance, and good polished sliding surfaces | Higher material cost | High-load or impact-sensitive valve components |
| Stainless Steel | High toughness and easy mechanical integration | Chemical compatibility depends on the actual fluid conditions | General fluid-control hardware and supporting components |
| Engineering Polymer | Lightweight, economical, and suitable for forming complex fluid-control structures | Lower long-term wear resistance and dimensional stability | Disposable or lower-load fluid-control components |
| Ceramic + Polymer Assembly | Combines precision ceramic working surfaces with flexible polymer connections | Requires careful interface and tolerance design | Integrated medical fluid-control assemblies |
For precision blood separation and analyzer valve applications, high-purity alumina provides a strong balance of hardness, chemical stability, dimensional accuracy, wear resistance, and precision surface-finishing capability.
An alumina ceramic blood separation valve is used as a precision fluid-control component in hematology analyzers, IVD systems, blood-processing equipment, and medical analytical instruments. It helps route blood samples, reagents, cleaning fluids, and other analytical liquids between different flow channels.
High-purity alumina provides high hardness, good chemical resistance, dimensional stability, and excellent surface-finishing capability. These properties make it suitable for precision valve components requiring repeated switching, wear resistance, and stable mating surfaces.
Related material: Alumina Ceramic Components
Yes. Hole diameter, quantity, position, groove shape, flow-channel layout, outer diameter, thickness, positioning features, and mating surfaces can be customized according to customer drawings or application requirements.
Critical mating surfaces can be precision ground, lapped, and polished. For high-precision applications, a target surface roughness of Ra 0.02–0.05 μm can be evaluated according to part dimensions, geometry, alumina grade, and inspection requirements.
Yes. For rotary or sliding valve assemblies, mating ceramic discs can be manufactured and inspected as matched components according to dimensional tolerances, flatness, surface roughness, assembly clearance, and mating requirements.
Related product: Precision Ceramic Valve Core & Ceramic Disc Set
Material grade, fluid-contact conditions, chemical compatibility, cleaning or sterilization methods, surface requirements, and applicable regulatory requirements should be evaluated according to the final device and target market. CERAMPRO can support material selection and manufacturing feasibility evaluation based on customer drawings and application conditions.
Yes. CERAMPRO supports global OEM customers in the United States, Germany, Japan, and across Europe with customized alumina ceramic blood separation valve components.
We provide manufacturing support from engineering samples and prototype validation to small-batch qualification and repeat production, based on customer drawings, tolerance requirements, fluid conditions, mating structures, and application requirements.
